Optical inspection system TOM Combi-Line

electronicautomaticfor the automotive industry

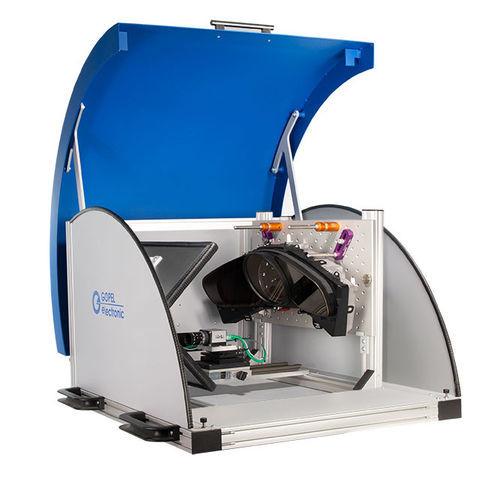

Optical Inspection System for Instrument Clusters The TOM Combi-Line, produced by GÖPEL electronic, is an optical inspection system which is ideal for prototype and evaluation testing of instrument clusters in any type of vehicle. The inspection tasks carried out by the TOM Combi-Line include checking display contents such as icons or characters. Depending on the application, the compact desktop model can be fitted with up to three 20-MegaPixel cameras. The image capture of the instrument clusters is not done directly but via integrated mirror assemblies. One special feature is the flexible test item bracket, which allows optical inspection of any kind of instrument cluster.
