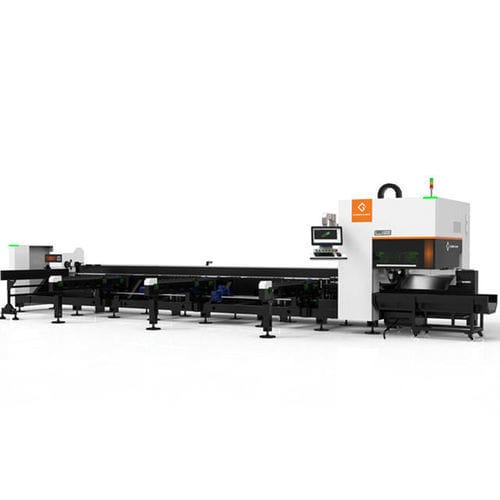

Fiber laser cutting machine L12 / L16

for metalsemi-automaticfor small diameter

L-Series: High-Speed Small Tube Fiber Laser Cutting Machine (L12 / L16)
The L-Series is a specialized, compact fiber laser solution engineered for the high-precision processing of small-diameter metal tubes and profiles. Featuring a zero-scrap waste design, this series is optimized for industries that require rapid production cycles with maximum material yield. With a maximum acceleration of 2.0G and a pneumatic high-speed chuck, the L-Series is the professional choice for manufacturing automotive parts, metal furniture, and complex medical components.




Core Industrial Advantages
• Zero-Scrap Waste Technology:
Utilizing a unique front chuck avoidance and dual-function compound chuck, the L12/L16 achieves true zero-scrap cutting, eliminating the waste typically associated with traditional tube processing.
• Ultra-Fast Cycle Times:
With a maximum acceleration of 2.0G and an 8-second tube changeover, this machine is built for speed, significantly outperforming general-purpose laser cutters in small-diameter applications.
• Smart Semi-Automatic Loading:
An intelligent chain-loading system enables ultra-fast feeding for small-batch production, reducing idle time and labor requirements.
• Fully Servo Floating Support:
A high-response servo-controlled support system ensures pinpoint stability for long, thin tubes, preventing vibration or bending during high-speed rotation.
• Plug-and-Play Integrated Design:
The compact, integrated structure allows for rapid on-site installation and easy transport without the need for complex disassembly.




Technical Specifications
• Round Tube Capacity: ∅ 8 mm – 120 mm ; ∅ 8 mm – 160 mm
• Square Tube Capacity: 8*8 mm – 120*120 mm ; 8*8 mm – 160*160 mm
• Laser Power Options: 1500W- 6000W
• Maximum Acceleration: 2.0G
• Max. Rotation Speed: 200 r/min
• Repeat Positioning Accuracy: 0.03 mm
• Material Utilization: True Zero Scrap
• Single Tube Max Load: 70 kg




Industrial Applications & Material Versatility
The L-Series is a versatile workhorse for high-precision manufacturing across various materials and tube shapes:
• Materials: Stainless steel, carbon steel, galvanized steel, brass, copper, and titanium.
• Profiles: Round, square, rectangular, oval, and special waist round profiles.
• Sectors: Automotive parts, medical equipment, fitness frames, scaffolding components, and metal furniture.




Why Choose the L-Series?
• Efficiency: Designed to cut small tubes up to twice as fast as standard machines.
• Cost Savings: Zero-scrap design directly reduces raw material overhead.
• Intelligence: 3D laser cutting is optional for complex beveling and fit-up tasks.
