3D laser cutting machine i35A-3D

for metaltubefor metal fabrication

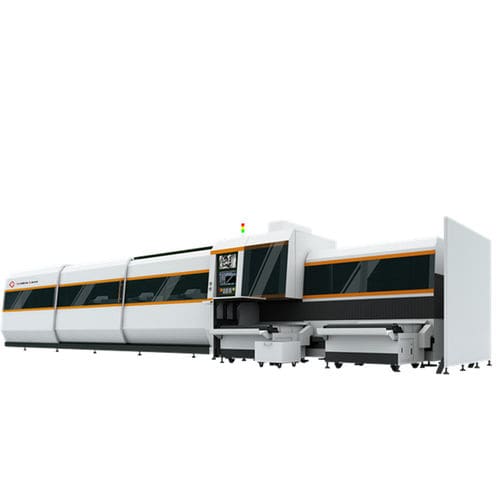

i35A-3D High-End CNC Fiber Laser Tube Cutting Machine
The i35A-3D represents a decade of R&D, merging advanced automation with intelligent digital control. Designed for high-precision metal tube processing, this machine features a specialized ±45 rotating head for 3D bevel cutting, significantly streamlining weld seam preparation and complex assembly for industrial applications.




Key Industrial Applications
• Steel Structures & Scaffolding
• Shipbuilding & Marine Engineering
• Automotive Parts Manufacturing
• Heavy Machinery & Infrastructure












Core Advantages
• 3D Bevel Cutting (±45): Expand your processing capabilities beyond 90 cuts. The rotating laser head allows for precise beveling, making weld splicing faster and more accurate.
• Intelligent Automation: Supports fully automated loading/unloading systems. The i35A-3D is customizable with robotic integration to create a 24/7 flexible manufacturing cell.
• Superior Stability: Built with a full-plate welded, high-strength structural bed to ensure long-term precision, even under high-acceleration (1.2G) workloads.
• Eco-Friendly & Safe: A fully enclosed structure paired with an integrated dust extraction system ensures a clean workspace and maximum operator protection.












Technical Specifications
• Round Tube Range: ∅ 20 – 350 mm (0.78″ – 13.77″)
• Square Tube Range: 20 – 250 mm (0.78″ – 9.84″)
• Standard Tube Lengths: 6m, 7m, 8m, 9m, 12m (Optional)
• Laser Source: IPG / Raycus / Maxphotonics
• Power Options: 1500W- 2kW
• Max. Acceleration: 1.2G
• Max. Rotation Speed: 130 r/min
• Positioning Accuracy: 0.03 mm
• Auto-Loading Capacity: Up to 25kg/m






Customization & Integration
We offer tailored solutions to fit your specific production line requirements, including specialized tube lengths and robotic arm synchronization for fully autonomous metal processing.
