Product Introduction

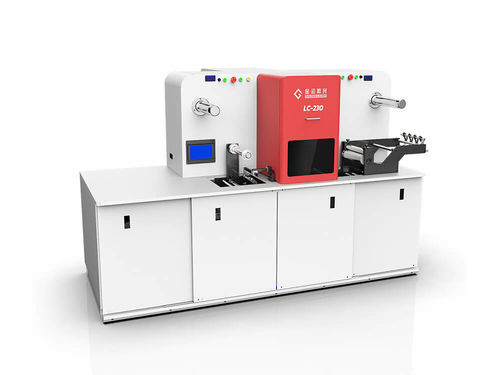

LC230 Label Laser Die Cutter is an excellent choice for digital short-run finishing, offering zero pattern changeover time and no tooling costs. This technology is the perfect partner for digital printing presses.

• Maximum Web Width: 230mm / 9”
• Maximum Web Diameter: 400mm / 15.7”
• Maximum Web Speed: 60 m/min
• Laser Power: 100 Watt / 150 Watt / 300 Watt

Laser Finishing Solutions for Labels Converting
The unique table size laser die cutter on the market at affordable price.
LC230 is a compact, economic and fully digital laser die cutter, available with Single or Dual Laser Heads. LC230 comes standard with unwinding, laser cutting, rewinding and waste matrix removal units. It is prepared for add-on modules such as UV varnishing, lamination and slitting, etc.
The system can be fitted with barcode readers for automatic pattern changeover on the fly. Stackers or pick-and-place robots can be added for a fully automated solution.
LC230 offers a complete digital and automatic solution for roll to roll (or roll to sheet) laser cutting. No extra tooling expense and waiting time needed, ultimate flexibility to fulfill dynamic market demands.
Benefits of Laser Die Cutter

• Quick Turnover: Eliminates traditional tooling & die fabrication, maintenance and storage. Ideal solution for just-in-time manufacturing and short-runs.
• Multiple Processes: Suitable for different kinds of work: Full cutting, kiss-cutting, perforating, micro perforating, engraving, marking, creasing - in a single processing run.
• Digital Workflow: Pattern changeover is as simple as opening a file; no downtime or setup is required.
• Precision Cutting: Produce complex geometry and superior part quality that cannot be replicated in the traditional die cutting process.
• Vision System - Cut to Print: Vision camera systems or sensors are available for registering printed materials or pre-die cut shapes, allowing precision cutting with cut-print registration of 0.1mm.
• Intelligent Software: Self-developed software intelligent algorithms improve cutting accuracy by constantly adjusting the laser processing speed to match different graphics.
• PC Workstation: Manage all the parameters of the laser station, optimize layout for maximum yields.
• Modular Design: Extreme Flexibility: A variety of options are available to automate and customize the system to suit a wide variety of converting requirements.
• Unlimited Cutting Path: The cutting beam can be moved in any direction and cuts smoothly. Easily create rounded, squared corners or jagged edges for shaped labels.

Modular Stations Provide Endless Versatility

• Slitting (Razor, Scissor & Score Cut)
• UV Varnishing
• Lamination
• Back Score (Slit) the Liner
• Automatic Web Guiding
• Liner Change Assembly (Top or Bottom)
• Barcode Reading - on-the-fly job change
• Matrix Removal
• Dual Rewinder
• Stacking Unit
• Sheeting Unit with Adjustable Conveyor Table

Workflow

• Loading the designs: Support .dxf, .dst, .jpg, .ai, .plt, .bmp, etc.
• Parameter setting: Laser power, working speed, labels quantity to cut, etc.
• Start cutting: Computer automatically saves the parameters for the same material and patterns

Laser Converting Application
Common materials used for the laser die cutting machines include: Paper, plastic film, glossy paper, matt paper, synthetic paper, cardboard, polyester, polypropylene (PP), PU, PET, BOPP, plastic, film, microfinishing film, etc.
Common applications for the laser die cutting machines include:

• Labels
• Adhesive Labels and Tapes
• Reflective Tapes / Retro Reflective films
• Industrial Tapes / 3M Tapes
• Decals / Stickers
• Abrasives
• Gaskets

Quick Specifications
Model No.
LC230
Max. cutting width
230mm / 9"
Max. cutting length
Unlimited
Max. width of feeding
240mm / 9.4”
Max. web diameter
400mm / 15.7"
Web speed
0-60m/min (Speed varies depending on material and cutting pattern)
Accuracy
±0.1mm
Laser type
CO2 RF metal laser
Laser power
100W / 150W / 300W
Power supply
380V three phase 50/60Hz

Main Technical Parameters
Working Area
Width 230mm (9”), Length ∞
Speed
0-60m/min (depending on laser power and cut pattern)
Machine Dimension
2400mm (L) X 730mm (W) X 1800mm (H)
Weight
1500Kg
Consumption
2KW
Power supply
380V / 220V, 50Hz / 60Hz, three phase
Maximum Web Width
240mm (9.4”)
Maximum Web Diameter
400mm (15.7”)
Core
3 inch
Pneumatic Expanding Shaft
3 inch
Tension Control
Optional
Splice Table
Optional
Web Guide
BST / EURDOW (Optional)
Laser Source
Sealed CO2 RF laser
Laser Power
100W / 150W / 300W
Laser Wavelength
10.6 micron or other
Laser Beam Positioning
Galvanometer
Laser Spot Size
210 microns
Cooling system
Water cooling
Back side slitting

Matrix Rewinding

Pneumatic Expanding Shaft
3 inch
Rewinder
Tension Control
Optional
Pneumatic Expanding Shaft
3 inch
Options
UV Varnishing unit
Laminating unit
Slitting unit

Supported graphics formats
AI, BMP, PLT, DXF, DST

Processing materials
PET, paper, glossy paper, matt paper, polyester, polypropylene, BOPP, plastic, film, polyimide, reflective tapes, fabric, sandpaper, etc.

Standard function
Full cutting, kiss cutting (half cutting), perforation, engraving, marking, etc.

Optional function
Lamination, UV varnish, slitting, etc.

Characteristics / Technical Specifications

• Model No.: LC230
• Max. cutting width: 230mm / 9"
• Max. cutting length: Unlimited
• Max. width of feeding: 240mm / 9.4”
• Max. web diameter: 400mm / 15.7"
• Web speed: 0-60m/min (Speed varies depending on material and cutting pattern)
• Accuracy: ±0.1mm
• Laser type: CO2 RF metal laser
• Laser power: 100W / 150W / 300W
• Power supply: 380V three phase 50/60Hz
• Machine Dimension: 2400mm (L) X 730mm (W) X 1800mm (H)
• Weight: 1500Kg
• Consumption: 2KW
• Supported graphics formats: AI, BMP, PLT, DXF, DST
• Processing materials: PET, paper, glossy paper, matt paper, polyester, polypropylene, BOPP, plastic, film, polyimide, reflective tapes, fabric, sandpaper, etc.
