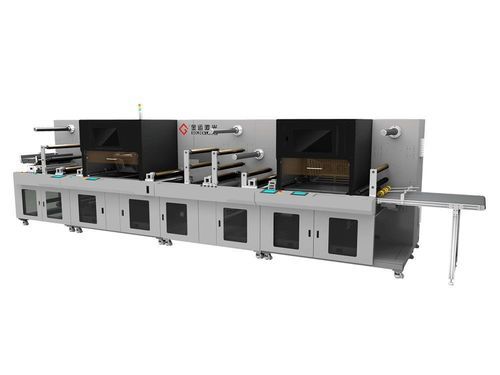

Laser cutting system LC800

diesheetcontour

Product Overview
The LC800 Multi-Station Web Laser Die-Cutter is an advanced solution designed for demanding web material processing. Featuring a large 800mm web width, this system handles a wide range of materials. Built with customizable multi-laser processing stations, the LC800 allows users to perform many complex converting steps in one smooth operation. Its great flexibility comes from supporting both Roll-to-Roll and Roll-to-Sheet processing methods, effectively meeting the various needs of modern web product manufacturing, greatly increasing production speed, and lowering operating costs.

Key Performance Features

• Wider Material Handling with an 800mm Web Width: The LC800 has an 800mm-wide processing area, easily handling larger web materials and increasing the types of materials you can use, making the system more adaptable.
• Adjustable Multi-Station Design for Custom Workflows: Users can easily plan and set up multiple separate laser processing units to perfectly match their web product's production steps. Whether the job needs different types of cutting one after another, detailed perforations, precise scoring lines, or extra functions, the LC800 offers a simple and effective answer. This custom setup reduces the time materials spend moving between steps, leading to significant improvements in overall production speed.
• Combined Multi-Process Ability for One-Pass Complex Converting: The LC800 is more than just a laser cutter; it's a smart, combined converting platform. By easily using different laser types and function units, the system can perform many complex converting tasks at the same time or one after the other, including:

• Precision Contour Cutting: Achieving high-accuracy cutting of complex shapes, ensuring superior product quality.
• Fine Perforation: Meeting diverse perforation requirements for hole sizes and densities.
• Precise Scoring: Enabling accurate fold lines or tear lines.
• Kiss-Cutting/Through-Cutting: Performing cuts to varying depths based on specific needs.
• Pattern Engraving: Facilitating personalized product surface customization.

This capability to complete multiple processes in a single pass eliminates the cumbersome steps of repeated handling and repositioning inherent in traditional methods, dramatically shortening production cycles and enhancing throughput.

• Flexible Roll-to-Roll/Roll-to-Sheet Dual-Mode Processing for Wider Applications: The LC800 offers exceptional processing mode flexibility, allowing seamless switching between Roll-to-Roll and Roll-to-Sheet configurations to suit different production demands:

• Roll-to-Roll: Ideal for high-volume, continuous processing of web products such as labels, films, and tapes. Material feeds directly from the roll into the equipment for continuous multi-station processing, outputting in roll form for efficient automated production.
• Roll-to-Sheet: Suitable for processing web materials that need to be cut into individual sheets or specific-sized blanks. After laser die-cutting, the equipment automatically shears the processed material into pre-set sheet dimensions for convenient downstream handling.

This dual-mode flexibility, combined with the 800mm web width, enables the LC800 to address a broader spectrum of web converting applications, maximizing equipment utilization.

• Enhanced Production Efficiency and Reduced Operational Costs: The LC800's multi-station and multi-process integration, coupled with flexible web processing modes and the 800mm web width, significantly increases output per unit time and shortens lead times. Simultaneously, it reduces capital expenditure on multiple machines and minimizes labor costs, along with material waste associated with repeated handling, ultimately delivering a comprehensive boost in production efficiency and lower operational expenses.

Choose the LC800 and Benefit From:

• Larger Processing Format: 800mm web width accommodates wider web materials.
• Higher Production Throughput: Multi-station parallel processing and continuous roll-to-roll operation significantly reduce production cycles.
• Enhanced Process Versatility: Customizable station layout to meet diverse and complex processing requirements.
• Broader Application Scope: Roll-to-Roll and Roll-to-Sheet dual modes adapt to various web product processing needs.
• Superior Product Quality: Precision laser processing technology ensures product accuracy and consistency.
• Lower Operational Expenses: Reduced capital investment and labor costs, maximizing resource utilization.

Applications

• Label Printing & Converting: Manufacturing of various types of labels, including pressure-sensitive labels, self-adhesive labels, in-mold labels, and more.
• Packaging: Production of flexible packaging components, pouches, sleeves, and carton blanks (kiss-cutting and scoring).
• Electronics: Precision cutting and converting of flexible circuits (FPC), shielding materials, insulation films, and adhesive components used in electronic devices.
• Automotive: Manufacturing of interior trim components, gaskets, seals, and adhesive parts used in vehicle assembly.
• Medical & Healthcare: Converting of medical tapes, wound care dressings, diagnostic test strips, and transdermal patches.
• Textiles & Apparel: Cutting and marking of technical textiles, sportswear components, and garment labels.
• Signage & Graphics: Production of flexible signage, decals, stickers, and promotional materials.
• Industrial Applications: Converting of tapes, films, foams, and other flexible materials for various industrial uses, such as insulation, sealing, and bonding.
• Abrasive (Sandpaper) Industry: Manufacturing of sanding discs, belts, and custom shapes for various sanding applications.

Materials Processed

• Films: PET, PVC, BOPP, PE, PP, Polyimide (Kapton), and other plastic films (clear, metallized, coated).
• Adhesive Materials: Single and double-sided adhesive tapes, label stock with various face stocks (paper, film), and specialty adhesive materials.
• Paper & Cardboard: Coated and uncoated paper, thermal transfer paper, synthetic paper, and thin cardboard (for kiss-cutting and scoring applications).
• Foams: Thin plastic foams, rubber foams, and other flexible foam materials.
• Textiles: Woven and non-woven fabrics, technical textiles, and synthetic leather.
• Flexible Circuits (FPC): Polyimide-based and other flexible circuit materials.
• Magnetic Materials: Thin flexible magnetic sheets and strips.
• Release Liners: Silicone-coated paper and films.
• Abrasive Materials (Sandpaper): Paper-backed, cloth-backed, and film-backed sandpaper with various grits.

Technical Specifications
Model No.: LC800
Max. Web Width: 800mm / 31.5"
Max. Web Speed: Depending on laser power, material and cut pattern
Accuracy: ±0.1mm
Laser Type: CO2 RF metal laser
Laser Power: 150W / 300W / 600W
Laser Beam Positioning: Galvanometer
Power Supply: 380V three phase 50/60Hz
