Pulsed fiber laser marking and engraving machine MQ-FBD-LITE-30W

plasticmetalaluminum

Product overview

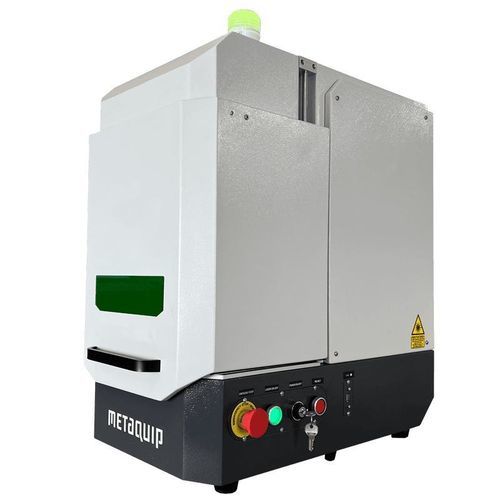

The Lite Desktop Fiber Laser Engraving Machine is MetaQuip’s closed entry-level engraving and marking machine suitable for many metals and a number of plastics. It offers high precision and versatility in a compact desk-friendly design. The machine is supplied complete with laser software and an industrial air extraction with HEPA air filter and is classified as laser class 2M.

Key features

• Laser engraving and marking on metals such as gold, silver, aluminum, iron, stainless steel and many other metals; also suitable for a number of plastics. Simple laser engraving of jewelry and rings.
• Compact footprint suitable for placement on a desk.
• Supplied with industrial air extraction (HEPA) as standard.
• Closed housing with integrated sliding door for safe operation (laser class 2M).
• High resolution and precision (1064 nm wavelength, very small spot size).
• Maintenance-free fiber laser source with long expected lifetime.

Applications

• Creative industry and hobbyists
• Jewelers (detailed engraving of rings, bracelets, necklaces, personalized items)
• Industrial marking: serial numbers, logos, nameplates, traceability (barcodes, data-matrix), tool marking

Work area & dimensions
Workpiece workspace: 100 x 100 mm standard (optional 70 x 70 mm lens available). Internal workspace: 29 cm (W) x 25 cm (D) x 23 cm (H). Overall machine dimensions: 62 x 37 x 72 cm (depth x width x height).

Laser & performance
Standard laser power: 30 W (20 W optional). Laser type: pulsed, high-energy Raycus fiber laser. Wavelength: 1064 nm. Repeat frequency: 20-100 kHz. Minimum spot diameter: 0.01 mm. Minimum line width: 0.01 mm. Linear marking speed: 0-2000 mm/s. Character engraving speed: > 800 characters/sec. Marking depth range: 0.01 - 1 mm. Laser output power adjustable 0-100% with red point positioning & focusing laser < 1 mW.

Operation & software
Control via computer with supplied EzCAD laser software (supports many vector and image formats and variable text/numbering). Lightburn is available as an optional software alternative. The laser head scans via an XY mirror; focus height is set manually depending on workpiece height.

Safety & extraction
Closed housing with sliding door provides contained laser operation. Supplied industrial air extraction with integrated front and HEPA air filter; extraction complies with ISO 15012-4:2016 to capture particles and fumes generated during engraving.

Options

• Laptop with laser software installed
• Rotation (rotary) module for circular/round engraving
• Alternative lenses (e.g. 70 x 70 mm)
• Service/maintenance contract and on-site installation & training (optional)

Technical specifications

• Working area: 100 x 100 mm (optional 70 x 70 mm)
• Laser type: pulsed, high-energy Raycus laser
• Wavelength: 1064 nm
• Emergency stop switch: yes
• Key on / off switch: yes
• Repeat frequency: 20-100 kHz
• Laser power: 30 W standard, 20 W optional
• Red point positioning & focusing laser: < 1 mW
• Laser output power: 0-100%
• Minimum spot diameter: 0.01 mm
• Minimum line width: 0.01 mm
• Linear marking speed: 0-2000 mm/s
• Character engraving speed: > 800 characters / sec
• Repeatability: ± 0.001 mm
• Marking depth: 0.01 - 1 mm
• Cooling: air cooling
• Supply voltage: 230 Vac ±10%, 50-60 Hz
• Machine power: < 500 W
• Work table: Z-axis (0-400 mm) manual adjustment (max workpiece height 200 mm)
• Housing: closed model (foot pedal connection available)
• Dimensions (L x W x H): 62 x 37 x 72 cm
• Weight: 50 kg
• Control: via computer (not included as standard) with EzCAD (or optional Lightburn)
• Working temperature: 13-28 °C
• Ambient temperature: -40-70 °C
• Included: product & software manual (Dutch, English or German)
• Industrial air extraction: integrated front + HEPA filter (complies with ISO 15012-4:2016)
• Guarantee: 2 years on the laser machine (laser source expected life 50k–100k hours depending on use)
