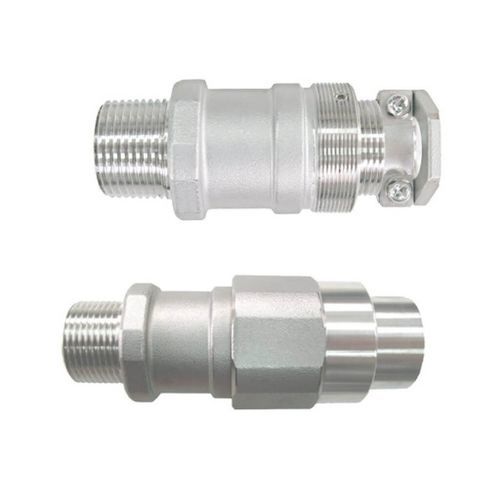

Stainless steel cable gland ECG IP68explosion-proofthreaded
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Protection level
- explosion-proof, IP68
- Other characteristics
- threaded
- Cable diameter
Max.: 1.5 in
Min.: 0.5 in
- Operating temperature
-20 °C
(-4 °F)
Description
Technical Data
Connection Size: 1/2"~1-1/2"
Connection Size Rating: M, NPT available
Material: Body: SS316/SS316L/CF3M, and SS304/SS304L/CF8; O-Ring: C.R. (Chloroprene Rubber);
Packing: C.R. (Chloroprene rubber)
Cable Enter Construct Type:
Type A: General Type (For cable entering only);
Type B: Coupling Type (For conduit connection)
Working Pressure Limit: 5 Bar
Min. Temperature: -20℃ for C.R. (Chloroprene Rubber)
Protection Class: IP68
Catalogs
ECG Series
2 Pages
