Hydraulic hose 600 seriesstainless steelrubberbrake
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber, stainless steel
- Applications
- brake
- Other characteristics
- braided, PTFE inner liner
- Inner diameter
2.03 mm
(0.08 in)- Pressure
450 bar
(6,526.698 psi)- Temperature
Min.: -70 °C
(-94 °F)Max.: 260 °C
(500 °F)
Description

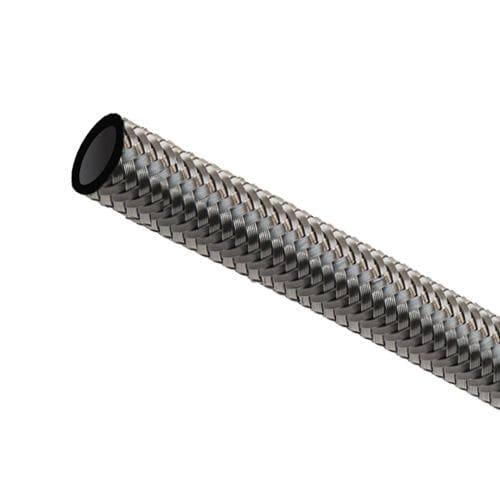

Goodridge 600 series hose range is a PTFE lined hose, wrapped in a Stainless-Steel braid; designed for brake and clutch applications.
(AN-04, AN-06 & AN-08 600 series hoses and fittings are available in Medium Pressure and High Pressure variants.)
The PTFE liner is braided with Stainless Steel, to provide consistent brake and clutch pedal/lever feel, eliminating any sponginess that may be found with the equivalent rubber hose. There is an option for the Stainless-Steel braid to be wrapped in an abrasive resistant covering that can be wiped clean.
Compatible with reusable and crimp fittings. (Specialist equipment required).
This hose is sold by the metre.
Fluid applications
Brake, Clutch & Hydraulics
Compatible fittings
-
Crimp / Reusable
