blade cake cutter / rectangular / round
CUTTERSONIC GCS300

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
blade cake cutter / rectangular / round blade cake cutter / rectangular / round - CUTTERSONIC GCS300
{{requestButtons}}

Characteristics

  • Type:

    blade

  • Shape:

    rectangular, round

Description

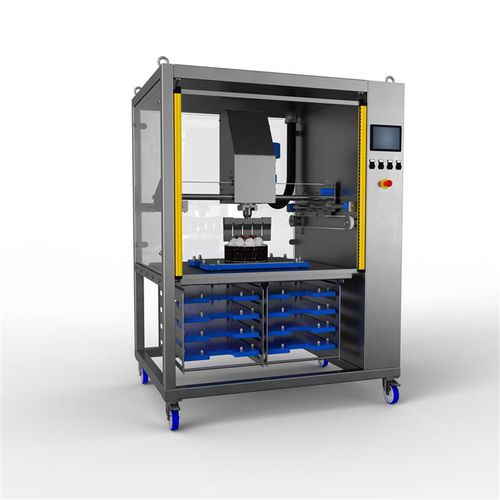

MULTICUT model, from CUTTERSONIC family, has been engineered to cut and slice easily and quickly round and rectangular products.

Realized with particular attention to high quality manufacturing standards, although being very compact in its dimensions, machine represents the best choice for companies focused on the final results of its products.
Fast change-over and maximum simplicity in the worktop, cutting plates and blade cleaning make this machine specific for any small and medium production demand.

TECHNICAL FEATURES:
•Fully stainless steel frame mounted on nr. 4 pivoting wheels.
•High quality manufacturing.
•Cutting head movement on x-y levels and rotation by means of servomotors.
•Vertical z axis movement with pneumatic command or with servomotor on request.
•Fully closed cutting head with mobile cables passage, attached to the top of the frame, in order to have the worktop completely free.
•Stainless steel converter, digital generator with booster and blade made of high quality titanium.
•Frontal safety protection by IP67 electronic barriers and lateral protections with wide apertures in transparent polycarbonate of high thickness.

STANDARD EQUIPMENT:
This machine is equipped of nr. 3 cutting shelves made of blue plastic material for the round format and nr. 3 for the rectangular 600 x 400 mm format.
Large electrical cabinet integrated in the frame and color touch screen control panel for the setting of the cutting programs.

DIMENSIONS: 1450 x 1050 x 1950 mm.

BENEFITS:
•User-friendly interface for a quick use.
•Possibility to realize squared, rectangular and triangular portions.
