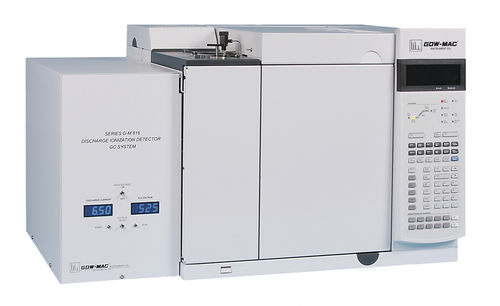

Gas chromatograph Series 816

laboratoryTCD

Series GM 816 High Performance GC offers superior applicated GC performance. The device is easy to customize and is used for research and quality control in several industrial and specialty applications. The instrument is customizable for specific applications. It is fitted with TCD, DID, FID, FPD detectors and thus offers dual detector capability. The device comes with a softkey keypad having four line alphanumeric display. It also features six ramp oven temperature programming control. It can also be outfitted with corrosion resistant flow systems. It supports 10 columns/7 automated valves in a single application. The device has a contact sensitive help function, run and clock time programming and stop watch function. This GC comes with four 24 V valve drivers, two 24 V low power relays, two 48 V contacts for external event control and power failure memory protection. It also has dual channel analog output of 1 mV, 1 V, 10 V and remote diagnostic communication capability.
