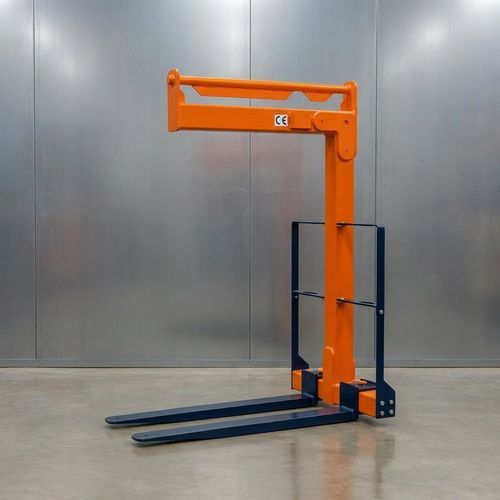

Pallet pallet fork PP15UM

for cranesfor pallet handling

Description
Crane pallet forks are manufactured to provide high resistance, safety and efficiency in handling pallets and industrial loads. Designed for use in construction, industrial sites and other demanding work environments. Manufacturer: GOYDU.

Available models

• PP750UME — Weight: 72 Kg — Max load: 750 Kg
• PP15UME — Weight: 118 Kg — Max load: 1,500 Kg
• PP20UME — Weight: 140 Kg — Max load: 2,000 Kg
• PP15UM — Weight: 110 Kg — Max load: 1,500 Kg

Dimensions table (mm) and data by model
Model | Weight (Kg) | Max load | A (mm) | B (mm) | C (mm) | D (mm)
PP750UME | 72 | 750 Kg | 1,030-1,300 | 910 | 715 | 780-1,050
PP15UME | 118 | 1,500 Kg | 1,330-1,630 | 1,150 | 810 | 1,050-1,350
PP20UME | 140 | 2,000 Kg | 1,300-1,600 | 1,150 | 860 | 1,000-1,300
PP15UM | 110 | 1,500 Kg | 1,600 | 1,150 | 810 | 1,300

Characteristics / technical specifications

• Brand: GOYDU
• Commercial designation: PP15UM
• Maximum load capacity: 1,500 Kg
• Weight (PP15UM model): 110 Kg
• Dimensions (PP15UM): A = 1,600 mm, B = 1,150 mm, C = 810 mm, D = 1,300 mm
• Other models and capacities available: PP750UME (750 Kg), PP15UME (1,500 Kg), PP20UME (2,000 Kg)
• Reference price (product on page): 580.00 EUR
