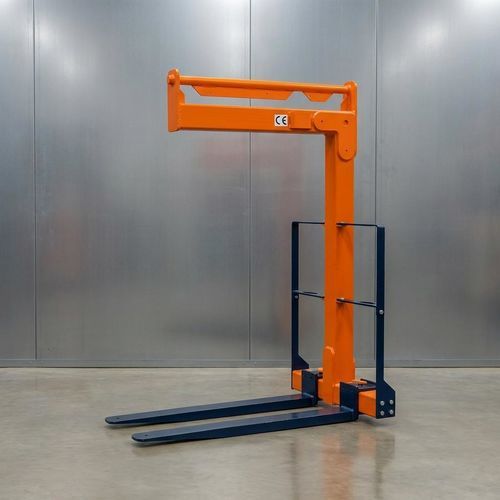

Adjustable pallet fork PP750UME

palletfor pallet handling

Description
Our crane forks are manufactured to provide strength, safety and efficiency in the handling of pallets and industrial loads. At GOYDU, based in Galicia, we design and produce industrial tools, lifting accessories and metal solutions suited to construction, industry and demanding work environments.

Models and specifications (table)
Model | Weight (Kg) | Max load | A (mm) | B (mm) | C (mm) | D (mm)
PP750UME | 72 | 750 Kg. | 1.030-1.300 | 910 | 715 | 780-1.050
PP15UME | 118 | 1.500 Kg. | 1.330-1.630 | 1.150 | 810 | 1.050-1.350
PP20UME | 140 | 2.000 Kg. | 1.300-1.600 | 1.150 | 860 | 1.000-1.300
PP15UM | 110 | 1.500 Kg. | 1.600 | 1.150 | 810 | 1.300

Dimensions and drawing references

• A, B, C, D: dimensions indicated in the table (mm). A and D in some models present ranges (adjustable depending on version).
• Weight shown in the table corresponds to the unit weight per model (Kg.).
• Max load: maximum lifting capacity per model (Kg.).

Features / Technical specifications

• Available models: PP750UME, PP15UME, PP20UME, PP15UM.
• Load capacities: 750 Kg., 1.500 Kg., 2.000 Kg. depending on model.
• Unit weight by model: 72 Kg. (PP750UME), 118 Kg. (PP15UME), 140 Kg. (PP20UME), 110 Kg. (PP15UM).
• Main dimensions (A, B, C, D) in mm according to the table; some models have ranges in A and D for adjustment (see table).
• Designed for handling pallets and industrial loads with focus on strength and safety.
