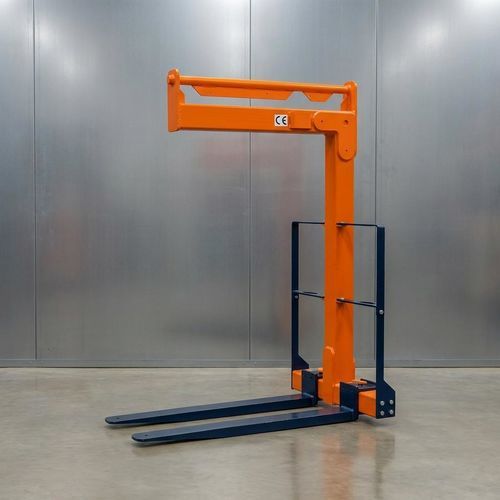

Adjustable pallet fork PP15UME

for cranesfor pallet handling

Description
The PP15UME crane pallet fork is designed for handling pallets and industrial loads with cranes and lifting equipment. It is suitable for construction sites, industrial facilities and demanding handling operations.

Main features

• Reinforced construction for extended service life.
• Geometry and attachment points adapted for safe pallet handling.
• Available in multiple load capacities depending on model.
• Compatible with cranes and industrial lifting equipment.

Models and dimensions
Model | Weight (kg) | Max load | A (mm) | B (mm) | C (mm) | D (mm)
PP750UME | 72 | 750 kg | 1.030-1.300 | 910 | 715 | 780-1.050
PP15UME | 118 | 1,500 kg | 1.330-1.630 | 1.150 | 810 | 1.050-1.350
PP20UME | 140 | 2,000 kg | 1.300-1.600 | 1.150 | 860 | 1.000-1.300
PP15UM | 110 | 1,500 kg | 1.600 | 1.150 | 810 | 1.300

Notes
The model shown on this page is PP15UME. Price shown on the product page: €560.00.

Technical characteristics

• Model: PP15UME
• Weight: 118 kg
• Maximum load: 1,500 kg
• Dimension A: 1.330-1.630 mm
• Dimension B: 1.150 mm
• Dimension C: 810 mm
• Dimension D: 1.050-1.350 mm
• Application: handling of pallets with cranes and industrial lifting equipment
