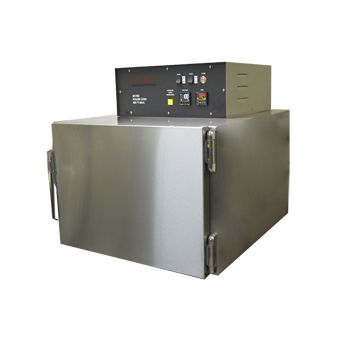

Roller oven M1750

agingstainless steeldigital

Easy Operation with independent or concurrent heating and rolling Grace Instrument M1740 and M1750 Roller Ovens provide high temperature environments and agitation for aging fluid samples for laboratory use. Determine temperature effects on drilling fluids The Grace Instrument Roller Ovens are available in two different sizing options, (4-roll M1740 and 5-roll M1750), to meet different capacity requirements. Corrosion-resistant materials are applied on both the rollers and oven enclosure to ensure durability and machine quality. A digital temperature controller and an extra temperature limit controller give safe and reliable high-temperature running up to 500° F. Delayed start, delayed stop, and immediate start can be set by a programmable timer. A voltage selector installed allowing machine to operate at 115VAC or 230VAC. Dimensions: 26"W x 31"D x 26"H Weight: 170 lbs. Heater Power: 1,000 W Power Supply: 110-230V, 50/60 Hz • Stainless steel enclosure and rollers • Digital temperature controller and limit temeprature controller • K type thermocouple connection installed on front panel for data log • Evenly distribute heat by inside air circulation
