Digital temperature controller M4030

heating

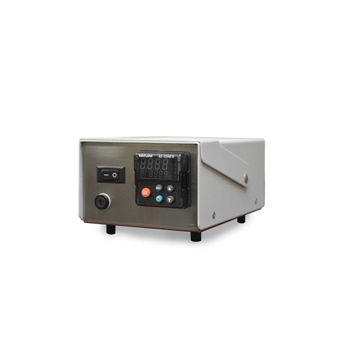

Temperature Controller helps monitor & control the heating process of other heating equipment The M4030 Temperature Controller is a light-weight unit designed to help operators monitor and control the heating process of other Grace Instrument equipment. The M4030 connects to heating equipment (such as our M1750 Roller Oven, a filter press heating jacket or a thermal cup) and monitors the heat ramping process. Using type K thermocouples, the M4030 accurately measures temperature and is extremely useful for controlling heating process applications. The custom Grace Software (included with each unit) allows the user to monitor and control temperature settings as well as export temperature data quickly and efficiently. Dimensions: 5"W x 8"D x 3.5"H Weight: 5 lbs Thermocouple Input: Type K Universal Thermocouple Jack: Accepts both miniature & standard male thermocouple connectors Power Supply: 100 to 240V, 47 – 63 Hz, 14 VA Max Load (resistive): 100 to 240V, 47-63 Hz, 15 Amps Dimensions: 5"W x 8"D x 3.5"H Weight: 5 lbs. • Digital display with easy to program buttons. • Simple on/off heater switch to start/stop heating. • Thermocouple accurately measures temperature reading. • RS485 data port easily gathers data on temperature. • Easily monitor temperature through custom Grace software. • AC adapter plug accommodates for power use internationally.
