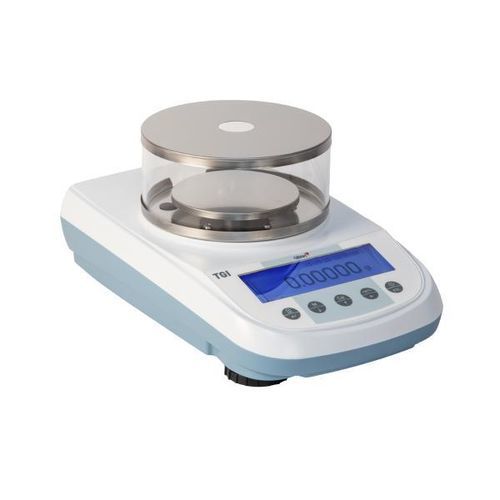

Laboratory balance TGI Precision

analyticalcountingmg

Overview
GRAM TGI Precision is a precision balance engineered for laboratory and production workflows requiring both high resolution and extended capacity. The electromagnetic force restoration weighing principle provides stable, repeatable readings while automatic internal calibration compensates for environmental variations. Standard applications include formulation, counting, percentage weighing and totalisation. The graphic display and configurable parameters simplify integration into varied processes.

Features

• Electromagnetic force restoration system for high sensitivity and fast stabilisation
• Automatic internal calibration to maintain accuracy during routine operation
• Formulation with recipe database: memory for up to 99 formulations, multiple ingredients per recipe
• Integrated ioniser on selected models (manual or continuous mode) to reduce static charge
• Extended analytical functions: piece counting, percentage weighing, totalisation, animal weighing, optional density determination
• Connectivity: RS-232 / RS-232C for system integration
• Capacity and resolution range: 720 g up to 6.2 kg with resolution from 0.001 g to 0.01 g

Performance, by the numbers
Capacity range: 720 g up to 6.2 kg
Resolution: from 0.001 g up to 0.01 g
Trade approval: Yes
Tare memories: No
Weighing units: g, mg, ct, oz, lb
Weighing filters: Animal weighing filter
Limits (checkweighing) function: Yes
Piece counting: Yes

Dimensions & Construction

• Construction: Reinforced double-case structure; high-performance load cell or electromagnetic system
• Optional: glass windshield available
• IP protection: N/A
• Plate dimensions: from 80 mm up to 160 mm

Typical application areas

• Laboratory formulation and analysis
• Production quality control and process weighing
• High-resolution counting and inventory tasks

Technical specifications

• Brand: GRAM
• Model: GRAM TGI Precision
• Weighing principle: Electromagnetic force restoration
• Automatic internal calibration: Yes
• Recipe memory: Up to 99 formulations (multiple ingredients)
• Integrated ioniser: Available on selected models (manual or continuous)
• Standard functions: Formulation, piece counting, percentage weighing, totalisation, animal weighing, optional density determination
• Capacity range: 720 g up to 6.2 kg
• Resolution: From 0.001 g up to 0.01 g
• Trade approval: Yes
• Tare memories: No
• Weighing units: g, mg, ct, oz, lb
• Weighing filters: Animal weighing filter
• Limits (checkweighing) function: Yes
• Connectivity: RS-232 / RS-232C
• Construction details: Reinforced double-case structure; high-performance load cell or electromagnetic system; optional glass windshield
• Plate dimensions: 80 mm up to 160 mm
• IP protection: N/A
