Pallet dimensioning system GRAM L335

weighing and

Overview
GRAM L335 powered by MetriXFreight is a certified static pallet dimensioning, weighing and scanning (DWS) system designed for automated measurement and visual documentation of pallets and bulky freight in high-throughput logistics. It combines 2D and 3D camera technology with a no-moving-parts measurement architecture and stable-condition triggering to minimise errors and manual rework.

Key features

• Purpose-built for palletised and oversized freight with measurement envelope up to 260 × 260 × 260 cm
• Static design with no moving components for high availability and low maintenance
• Automatic triggering and stable-condition measurement to ensure repeatable results
• Visual documentation: colour image per measurement, option for multiple cameras (up to five photos per object)

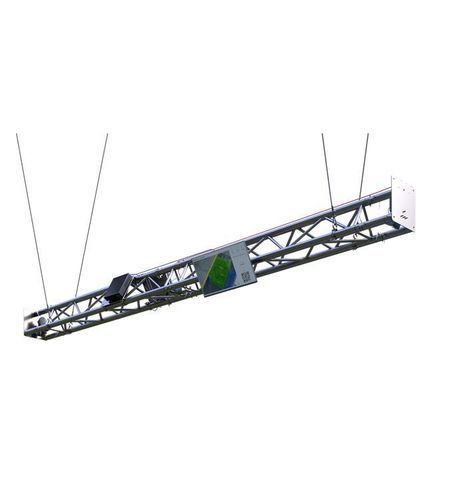

• Flexible installation: ceiling-mounted or V-shape floor configuration to suit warehouse layouts
• Integrates with inbound/outbound and transport workflows to reduce manual data entry

Capacity & accuracy
Measures pallets and bulky goods up to 260 × 260 × 260 cm. Dimensional accuracy: ±20 mm (length/width), ±10 mm (height). Weighing capacity (platform, model-dependent): 300 kg to 5,000 kg. Weighing resolution: from 200 g to 2 kg depending on model. Trade-capable implementations with CE-M / OIML verification available.

Connectivity & data integration
Ethernet standard; optional Wi‑Fi or LTE. JSON REST API for system integration; QR-code output and standard file exports (CSV, XLSX, PDF) including images. Indicator connectivity: RS-232C, TTL and optional USB-A.

Durability & environment
Platform IP rating: IP50 (indoor use); indicator IP65 on selected variants. Rigid static architecture designed for continuous warehouse operations and low maintenance demands.

Applications
High-throughput warehouse pallet dimensioning and legal-for-trade pallet billing; suitable for forklift, pallet truck or conveyor-based handling and integration into WMS/TMS/ERP processes.

Technical specifications

• Model: GRAM L335 powered by MetriXFreight
• Capacity range: 300 kg up to 5,000 kg (model dependent)
• Resolution (weighing): from 200 g to 2 kg (model dependent)
• Trade approval: CE-M / OIML verified options available
• Tare memories: memory for 20 preset tares
• Weighing units: g, kg (platform and indicator)
• Weighing functions: adaptive filters, animal weighing, programmable limit indicators (red/yellow/green), piece counting (sample sizes 10/25/50/100)
• Platform connectivity: Ethernet (standard), Wi‑Fi (optional), LTE (optional)
• Indicator connectivity: RS-232C, TTL, optional USB-A
• API & export formats: JSON REST API, QR code, CSV, XLSX, PDF (including images)
• Printer compatibility: Q2, PR4 options
• Battery (indicator options): lead‑acid battery with approx. 30/60 h service time depending on configuration
• Materials & construction: rigid static platform; indicator in ABS or AISI 304 stainless steel depending on model
• IP protection: platform IP50; indicator IP65 on some models
• Plate dimensions available: from 1200 × 1000 mm up to 2500 × 1500 mm depending on scale model
• Measurement envelope: up to 260 × 260 × 260 cm for palletised and bulky goods
• Visual documentation: colour image per measurement; multi-camera option up to five photos per object
