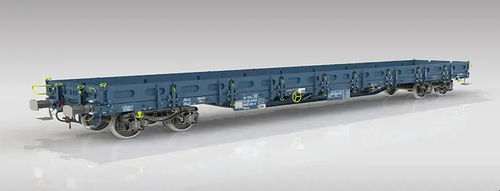

Wheeled carrier Rens

for the iron and steel sectorplatformfor containers

Features

• Suitable for transportation of long metallurgical products (steel tubes, profiles, sheet plates), general cargo, construction materials and wheeled vehicles.
• Equipped with 2 foldable small front flaps, 8+8 shortened or standard foldable stanchions (variant), and 9+9 foldable side flaps.
• Metal floor as standard; wooden floor available as a variant.
• Design compliant with TSI, EN and UIC standards; TEN GE marking for traffic operation.
• Underframe complies with EN 12663-2 and is configured for use as Rglns type wagon for transport of 3 x 20' or 1 x 40' + 1 x 20' containers.

Capabilities

• Loading from top by crane, from sides after tilting side stanchions and side flaps, or from front after tilting front flaps to form a transition platform.
• Load securing possible by various methods in accordance with UIC regulations.

Loading scheme
a-a | (m) | (t) | Δ Δ t
a-a | 2 | 36 | 37
b-b | 5 | 40 | 44
c-c | 9 | 42 | 52
d-d | 15 | 52 | 65
e-e | 18 | 65 | 28

Parameters
Axle load: 22,5 t
Track gauge: 1435 mm
Running gauge: G1+GI1 – TSI WAG, EN 15273-2
Brake regime: "S"
Brake type: GP-A (K)
Max. speed (light or ≤14,5 t/axle): 120 km/h
Max. speed (≤22,5 t/axle): 100 km/h
Climate conditions: T1, T3 – TSI WAG
Minimum curve radius (single uncoupled wagon): 50 m
Length over buffers: 19 900 mm
Tare weight: ~24,9 t
Payload: ~65,1 t
Loading height of floor: 1198 mm
Front and side flaps height (above floor): ~554 mm
Stanchion height (above floor): ~564 mm shortened; ~1337 mm standard
Loading length: 18 502 mm
Loading width: 2650 mm
Loading area: ~49 m²
Floor material: metal (wooden variant possible)
Bogie type: Y25Lsd-KP1V

Technical specifications

• Model name: Rens
• Axle load: 22,5 t
• Track gauge: 1435 mm
• Running gauge standard: G1+GI1 – TSI WAG, EN 15273-2
• Brake regime: "S"
• Brake type: GP-A (K)
• Maximum speed (light or ≤14,5 t/axle): 120 km/h
• Maximum speed (≤22,5 t/axle): 100 km/h
• Climate conditions: T1, T3 – TSI WAG
• Minimum curve radius (single uncoupled wagon): 50 m
• Length over buffers: 19 900 mm
• Tare weight: approximately 24,9 t
• Payload: approximately 65,1 t
• Loading height of floor: 1198 mm
• Front and side flaps height (above floor): approximately 554 mm
• Stanchion heights (above floor): ~564 mm (shortened), ~1337 mm (standard)
• Loading length: 18 502 mm
• Loading width: 2650 mm
• Loading area: ~49 m²
• Floor material: metal (wooden variant possible)
• Bogie type: Y25Lsd-KP1V
• Standards/compliance: TSI, EN, UIC; EN 12663-2 for underframe; TEN GE marking for traffic operation
