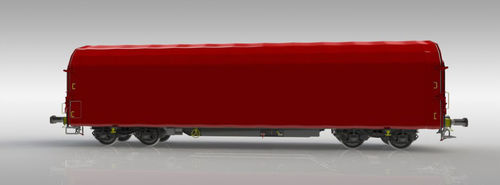

Wheeled carrier Rijmmns 660
for palletplatformfor containers

Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 2
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 3
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 4
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 5
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 6
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 7
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 8
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 9
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 10
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 11
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 12
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 13
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 14
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 15
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 16
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 17
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 18
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 19
Wheeled carrier - Rijmmns 660 - Greenbrier Europe - for pallet / platform / for containers - image - 20
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Options
platform, for pallet, for containers
Load capacity

62.4 t
(68.8 us ton)

Description

Features
  • Flat wagon with tarpaulin top designed to protect goods from weather during rail transport; suitable for high-value and sensitive products requiring controlled loading and transit safety.
  • Underframe with a sliding central sill and long-stroke hydrodynamic damper to absorb buffing impacts and reduce damage risk to cargo.
  • Designed and built to comply with TSI, EN and UIC requirements; certified with TEN-GE marking for traffic operation.


Capabilities
  • Top loading by crane or side loading after side stanchions are fully lowered into pockets; flexible handling for intermodal and wagon-to-wagon operations.
  • Multiple load-securing options provided (fitted with 2 x 8 side stanchions and 2 x 7 assurance devices) in accordance with UIC regulations.


Technical specifications
  • Axle load: 22.5 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1-TSI
  • Brake regime: "S"
  • Brake type: GP-A
  • Max. speed for 90.0 t: 100 km/h
  • Max. speed (unloaded): 120 km/h
  • Climate condition: T1
  • Rmin: 35.0 m
  • Length over buffers: 16,500 mm
  • Loading length: 14,000 mm
  • Loading width: 2,750 mm
  • Loading width (between stanchions): 2,650 to 1,250 mm
  • Tare weight (with HB): ~ 27.6 t
  • Payload: ~ 62.4 t
  • Loading area: 39.0 m²
  • Loading height from T.O.R.: 1,230 mm
  • Stanchions height: 1,200 mm
  • Central sill stroke: 350 mm
  • Floor material: acc. DIN 68705-2
  • Bogie type: Y25Lsd1
