Wheeled carrier SSDCT
beltspecialautomated

Add to favorites

Compare this product

Characteristics

Overview

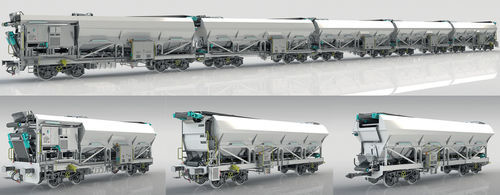

On-track machine "Super Self Discharging and Charging Train" (SSDCT) composed of a 5-unit permanently coupled rake integrating 4-axle special hopper wagons: 1 outer unit B, 3 inner units A and 1 outer power unit C.
Rake integrates upper conveyors for loading and lower conveyors for discharging; conveyors operate simultaneously following the dual-flow principle.
Designed as a technological element of specialized track renewal trains and coordinated to operate with other renewal machines.

Key features

Upper (loading) and lower (discharging) conveyor systems enabling continuous ballast transfer.
PLC-based control with inter-machine communication for synchronized operation.
Integrated sensors, internal cameras and external illumination for monitoring and safe operation.
10 bar air piping and couplings for cleaning and maintenance tasks.
Water spray dust suppression system for reduced airborne dust during handling.
Bogie type Y25Lsdi(f)-KC1, modified for on-track operation (with CFCB brake unit and hand brake).
Box construction in carbon steel for structural durability in ballast handling conditions.

Operational capabilities

Handles new ballast (well calibrated) and excavated old ballast from the track bed; suitable for mixed or contaminated excavated material.
New ballast general granularity: 31.5–50 mm; calculated material density: 1.7 t/m3.
Maximum running speed (transport mode): 100 km/h; maximum working speed: 700 m/h.
Designed to operate within climate class T1-TSI and running gauge G1-TSI.
Minimum curve radius: 125.0 m (single 5-unit rake); minimum curve radius in working mode: 350.0 m.

Technical data

Model designation: SSDCT (Super Self Discharging and Charging Train).
Configuration: 5-unit permanently coupled rake — 1 outer B, 3 inner A, 1 outer power C.
Axle load: 22.5 t/axle.
Track gauge: 1,435 mm.
Running gauge: G1-TSI.
Rmin (single 5-unit rake): 125.0 m; Rmin (working mode): 350.0 m.
Maximum track cant: 180.0 m.
Length over buffers (single rake): 63,130 mm.
Tare weights (units): inner unit A: 29.2 t; outer unit B: 30.9 t; outer power unit C: 35.2 t.
Ballast handled: new ballast 31.5–50 mm (density 1.7 t/m3) and excavated old ballast (possible contamination).
Bogie type: Y25Lsdi(f)-KC1 (with CFCB brake unit and hand brake), modified for on-track machine.
Equipment: upper and lower conveyors (dual-flow), sensors, internal cameras, external illumination, PLC control, inter-machine communication, 10 bar air piping and couplings, water spray dust suppression system.
Certifications/standards: IN 1418; NFF 58002; Directive 2006/42 EC.
