Wheeled carrier
for palletelectric

Wheeled carrier - Greenbrier Europe - for pallet / electric
Wheeled carrier - Greenbrier Europe - for pallet / electric
Wheeled carrier - Greenbrier Europe - for pallet / electric - image - 2
Wheeled carrier - Greenbrier Europe - for pallet / electric - image - 3
Wheeled carrier - Greenbrier Europe - for pallet / electric - image - 4
Wheeled carrier - Greenbrier Europe - for pallet / electric - image - 5
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Options
electric, for pallet
Load capacity

Min.: 50.8 t
(56 us ton)

Max.: 77.2 t
(85.1 us ton)

Description

Features

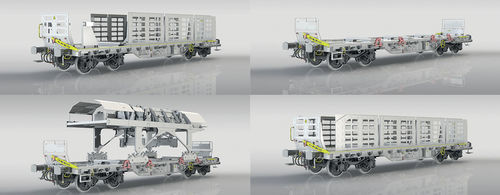

  • The on-track machine, known as Sleeper carrier, transports new and reclaimed railway sleepers stored on pallets.
  • A gantry crane running on two lateral rails travels at 20 km/h to transfer pallets between storage wagons and the track renewal train.
  • Lateral and frontal protection walls secure pallets and prevent sleeper fall during transit and handling.
  • Sleeper carrier is certified under the following standards:
    • IN 1418 for running on the French network
    • NFF 58002 for working on the French network
    • Directive 2006/42 EC


Capabilities
  • Loads up to four pallets, each carrying forty sleepers (5 layers of 8 sleepers separated by wooden battens).
  • Equipped with external illumination and 230 V AC electrical wiring for on-site power supply.
  • Minimum curve radius in running mode when wagons are bridged: 150 m.


Technical specifications
  • Track gauge: 1,435 mm
  • Running gauge: G1-TSI
  • Max. speed – running mode: 100 km/h
  • Max. speed – working mode: 70 km/h
  • Climate condition: T1-TSI
  • Minimum curve radius (Rmin): 80.0 m
  • Rmin – working mode: 350.0 mm
  • Maximum track cant: 180.0 mm
  • Length over buffers: 13,040 mm
  • Tare weight: 19.8 t
  • Max. weight in running mode: 70.6 t
  • Max. weight in working mode: 97.0 t
  • Bogie type: Y25Lsd-KP1 (modified for on-track machine)
