axial fan / exhaust / ventilation / belt-driven
TBI-FS

Add to MyDirectIndustry favorites
Compare this product
axial fan / exhaust / ventilation / belt-driven axial fan / exhaust / ventilation / belt-driven - TBI-FS
{{requestButtons}}

Characteristics

  • Configuration:

    axial

  • Function:

    exhaust, ventilation

  • Other characteristics:

    belt-driven, in-line, industrial, tube

  • Air flow:

    Min.: 6,000 ft³/min (169.9 m³/min)

    Max.: 77,000 ft³/min (2,180.4 m³/min)

Description

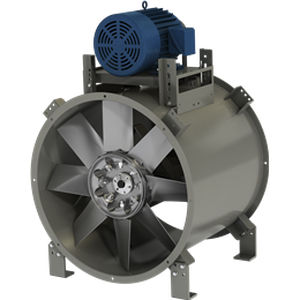

Model TBI-FS has a fabricated steel hub and airfoil blades. The unit is suitable for continuous high temperature (400ºF/204ºC max.). Bolt-on straightening vanes are available for increased efficiency. Typical applications include clean air, industrial processes, and high-temperature exhaust.

6,000 to 77,000 cfm
Up to 4.5 in. wg
Certifications:
AMCA licensed Air and Sound performance (AMCA 210 and 300)

UL/cUL Listed for Electrical (UL/cUL-705) and Power Ventilators for Smoke Control
