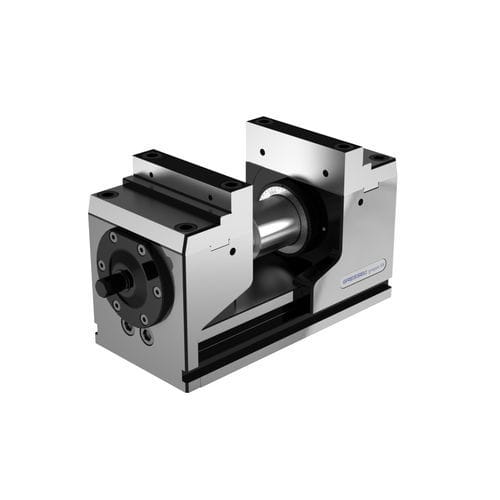

Machine tool vise grepos-5X series

modular5-axisswivel

The power-enhanced 5-axis power clamp grepos-5X guarantees optimum accessibility for “real” 5-axis complete/simultaneous machining thanks to its special design with a low base body and high jaws. Due to its lever quick clamping, workpieces are clamped in tension within seconds, which additionally prevents deflection of the base body. Adjust the entire clamping range in just a few seconds Quick positioning with the gredco zero-point clamping system on the machine table Clamping force infinitely adjustable Rotating jaws, quick and easy jaw change with four screws Easy cleaning Spindle completely protected large jaw program with system and top jaws as a modular system Advantages that will ✓ Lever quick clamping Simple, quick and safe clamping of the workpiece ✓ Encapsulated power transmission box Dirt-resistant and low-disturbance power transmission ✓ Stepless clamping force adjustment Simple and quick force adjustment from 10 – 100 % of the clamping force ✓ 5-axis clamp optimum accessibility for the tool from 5 sides Our Designs Standard version with reversible jaws grip 3 mm and step smooth 16 mm on both sides low version with standard top jaws Standard version base body and tie rod extension Standard version with fixed jaws mobile with aluminum top jaws Standard version with fixed jaws mobile with top jaws 5A, width 65 mm low version with fixed jaw mobile with swivel and adapter plates
