Machine tool vise C5X

5-axis machine toolmodular5-axis

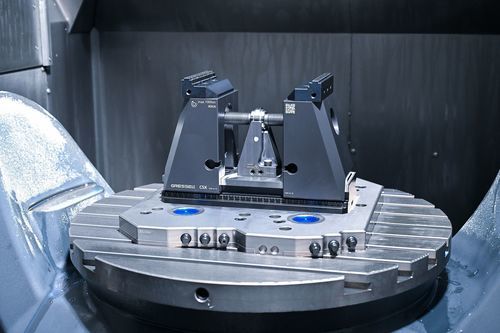

Product overview The GRESSEL C5X centric clamp is engineered for modern 5-axis CNC machining. Its compact footprint, high clamping force and excellent accessibility make it suitable for 5-axis machines with or without pallet automation. The C5X accepts all GRESSEL 2.0 system jaws, enabling tailored gripping solutions. A large basic clamping stroke and a quick-change spindle system allow fast adjustment of the clamping range.

Main advantages

• Best accessibility: High-support jaws and symmetrical design permit collision-free machining from all sides without a console.
• Modular design: Three heights (S/M/L) and multiple base-body lengths provide configurable clamping ranges.
• Quick jaw change: Jaws are replaceable in seconds using only two screws.
• High clamping force: Up to 40 kN for flexible, precise and repeatable clamping without pre-clamping.
• Quick spindle change & extension: Quick-change spindle system enables fast conversion to larger or smaller clamping ranges.

Compatibility and modularity All GRESSEL 2.0 system jaws are compatible with the C5X centre clamp. The comprehensive C2.0 jaw program and the large jaw construction kit allow customised gripping solutions (reversible jaws, prismatic jaws, etc.). Quick jaw change and a quick-change spindle system simplify reconfiguration.

Mounting and positioning The C5X provides standardised fastening variants for direct machine mounting. Alignment and clamping can be performed using the GRESSEL gredoc zero-point clamping system or SCHUNK VERO-S positioning variants. Additional positioning and fastening holes are available on request. Mounting options include fitting screws, precision sliding blocks, clamping claws and integration into zero-point systems.

Available executions / Versions The C5X is offered in three heights (S / M / L) and multiple base lengths. Typical executions:

• C5X-S (H = 142 mm)
• C5X-M (H = 181 mm)
• C5X-L (H = 252 mm)

Table - Important data at a glance Size | Clamping force | Dimensions (base body) | Weight
C5X-S L-320 mm | 0 – 40 kN | 320 x 125 x 142 mm | 26.1 kg
C5X-M L-320 mm | 0 – 40 kN | 320 x 125 x 181 mm | 32 kg
C5X-L L-320 mm | 0 – 40 kN | 320 x 125 x 252 mm | 42.6 kg
C5X-S L-400 mm | 0 – 40 kN | 400 x 125 x 142 mm | 29 kg
C5X-M L-400 mm | 0 – 40 kN | 400 x 125 x 181 mm | 35 kg
C5X-L L-400 mm | 0 – 40 kN | 400 x 125 x 252 mm | 45.5 kg
C5X-S L-500 mm | 0 – 40 kN | 500 x 125 x 142 mm | 32.5 kg
C5X-M L-500 mm | 0 – 40 kN | 500 x 125 x 181 mm | 38.5 kg
C5X-L L-500 mm | 0 – 40 kN | 500 x 125 x 252 mm | 49 kg
C5X-S L-600 mm | 0 – 40 kN | 600 x 125 x 142 mm | 36 kg
C5X-M L-600 mm | 0 – 40 kN | 600 x 125 x 181 mm | 42 kg
C5X-L L-600 mm | 0 – 40 kN | 600 x 125 x 252 mm | 52.5 kg
C5X-S L-800 mm | 0 – 40 kN | 800 x 125 x 142 mm | 43.2 kg
C5X-M L-800 mm | 0 – 40 kN | 800 x 125 x 181 mm | 49.1 kg
C5X-L L-800 mm | 0 – 40 kN | 800 x 125 x 252 mm | 59.7 kg

Applications The C5X is designed for 5-axis machining (OP10) and pallet automation environments, ensuring collision-free access for complex 5-sided and 5-axis operations. High-support jaws and the symmetric design enable machining without additional consoles.

Technical specifications

• Model family: C5X (5-axis centric clamping vise)
• Clamping force: 0 – 40 kN (max)
• Basic clamping stroke (large): 120 mm
• Heights available: H = 142 mm (S), 181 mm (M), 252 mm (L)
• Base body lengths available: L = 320, 400, 500, 600, 800 mm
• Jaw system compatibility: GRESSEL 2.0 system jaws (C2.0 program) — reversible jaws, prismatic jaws, etc.
• Quick jaw change: jaws removable with two screws
• Quick-change spindle system: fast conversion and spindle extension
• Top-mounted spindle: full clamping force applied directly to workpiece
• Mounting options: standard machine fastening variants; fitting screws, precision sliding blocks, clamping claws; optional integration with GRESSEL gredoc zero-point clamping
• Weights and dimensions: see table above
• Typical use: industrial 5-axis CNC machining and pallet automation
