Universal motor KG 70
DC24 V220 V

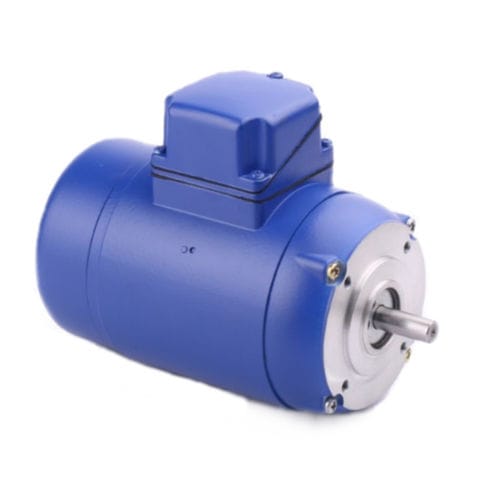

Universal motor - KG 70 - GROSCHOPP AG Drives & More - DC / 24 V / 220 V
Universal motor - KG 70 - GROSCHOPP AG Drives & More - DC / 24 V / 220 V
Add to favorites
Compare this product

Characteristics

Type
universal, DC
Voltage
24 V, 220 V, 110 V, 48 V, 100 V, 60 V, 80 V, 90 V, 70 V
Protection class
IP44
Applications
industrial, for robotics, for medical applications
Other characteristics
high-torque
Power

Min.: 0 W
(0 hp)

Max.: 56 W
(0.08 hp)

Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 0.108 Nm
(0.079657 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Description

The KG series are housed DC-drives with revolving armatures. These can be designed as series (universal motor) or shunt motor. The series motor has a high starting torque, but its speed is heavily load-dependent. The speed of the shunt motor remains nearly constant and is controlled by the armature voltage.The KG series are housed dc-drives with commutators. These can be designed as a series (universal motor) or shunt motor. The series motor has a large starting torque, but the speed depends strongly on the load. The shunt motor is speed stiff. The speed is controlled by the armature voltage.
