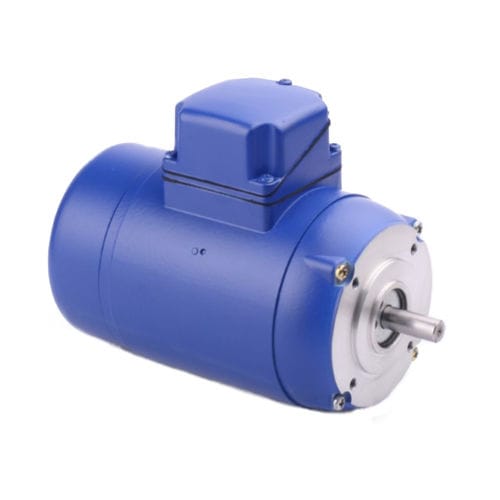

DC motor KG 80 series
brushed24V48V

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushed
Voltage
24V, 48V, 36V, 220 V, 110 V, 90 V, 100 V, 70 V, 60 V, 80 V
Protection class
IP44
Applications
for medical applications, for robotics, for the pharmaceutical industry, for pumps, industrial
Torque

Min.: 0.06 Nm (0.0443 ft.lb)

Max.: 0.223 Nm (0.1645 ft.lb)

Power

Min.: 24 W (0.033 hp)

Max.: 90 W (0.122 hp)

Rotational speed

Min.: 3,000 rpm (18,849.56 rad.min-1)

Max.: 10,000 rpm (62,831.85 rad.min-1)

Description

DC-Motors with housings can be found in robotics, medical and laboratory technology, door automation, special pumps and in industrial automation. External power electronics are not needed, making their application cost-effective. The KG series are housed DC-drives with revolving armatures. These can be designed as series (universal motor) or shunt motor. The series motor has a high starting torque, but its speed is heavily load-dependent. The speed of the shunt motor remains nearly constant and is controlled by the armature voltage.The KG series are housed dc-drives with commutators. These can be designed as a series (universal motor) or shunt motor. The series motor has a large starting torque, but the speed depends strongly on the load. The shunt motor is speed stiff. The speed is controlled by the armature voltage.
