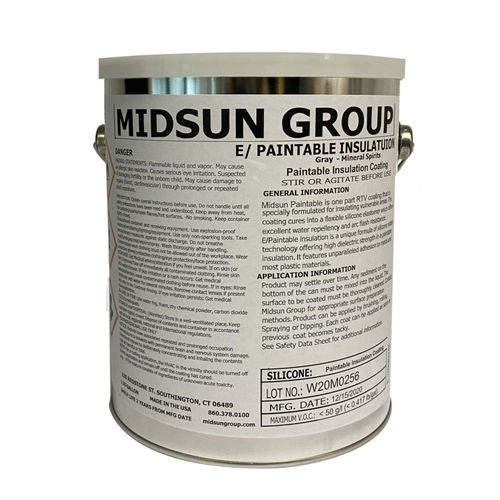

Finishing paint E/PEINTISO Midsun®

protectiveinsulatedelectrical insulation

Midsun’s E/PEINTISO range is a unique formula insulating paint in silicone rubber technology. It increases the insulation and dielectric properties of the material to which it is applied. Applied to the 2 ends of electrical insulators, metal support structures, bushes or cable heads, it reduces or even eliminates leakage current and arcing phenomena, thus reducing the risk of electrification and electrocution. Description E/PEINTISO silicone paint is made from silicone rubber. It provides the high dielectric strength required for good insulation, up to 10 kV phase to earth. The E/PEINTISO range is used by electrical and telecommunications companies and cable manufacturers. It adds strong weather protection to insulating structures made of plastics, fibreglass or metals, such as poles, bushings, capacitors, insulators, transformers and cable accessories. A 1-coat application of 0.762 mm on metal surfaces offers an insulation resistance of 10 kV, providing sufficient electrical insulation to guard against damage caused by animals. When applied to an electrically insulating surface such as Fibre Glass (FGD) barrier panels, E/PEINTISO provides water repellency and additional arc resistance. It offers excellent adhesion to galvanised metal and most ceramic, glass and plastic insulating materials. The advantages of the E/PEINTISO range: Prevents cracks and other costly damage to hard-to-replace equipment (poles, bushing, etc.) Reduces leakage current and arc propagation Prevents UV degradation and corrosion failure in outdoor environments Prevents moisture penetration (water-repellent) Prevents power system breakdowns and damage caused by animals
