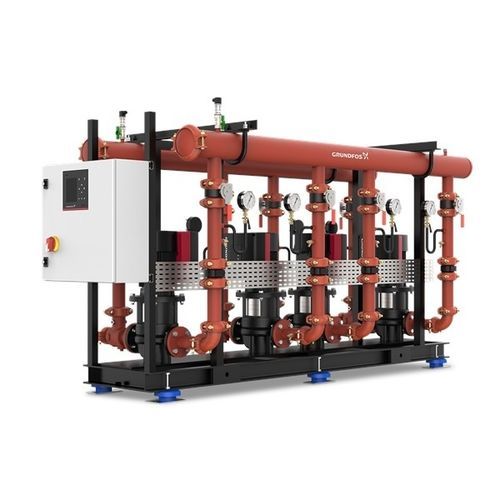

Centrifugal pumping system DELTA HCU
waterelectricstationary

Centrifugal pumping system - DELTA HCU - GRUNDFOS - water / electric / stationary
Centrifugal pumping system - DELTA HCU - GRUNDFOS - water / electric / stationary
Centrifugal pumping system - DELTA HCU - GRUNDFOS - water / electric / stationary - image - 2
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Applications
for air conditioning
Voltage
380-415V
Other characteristics
for heating, modular
Flow

Max.: 334 m³/h
(11,795.09868 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 85 m
(278'10" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 90 °C
(194 °F)

Min.: 5 °C
(41 °F)

Input diameter

Max.: 200 mm
(7.874 in)

Min.: 50 mm
(1.969 in)

Weight

Max.: 1,810 kg
(3,990.37 lb)

Min.: 495 kg
(1,091.29 lb)

Description

Advanced and energy efficient pumping system for HVAC needs. Modular design for various performance requirements. Say goodbye to the hassles of traditional piece-by-piece design, multiple suppliers, and logistical nightmares. Our plug-and-pump solution offers everything you need in one fully integrated system, all from a single supplier, providing engineers, contractors, and owners with an easier installation, significant cost savings, and top-notch building efficiency. Watch our video to learn more about how our new intelligently engineered solution can revolutionise your HVAC systems today! As the construction industry is driven towards greater efficiency, many applications are increasingly being built off-site. Grundfos prefabricated solutions meet the needs of the market by offering customised and tested systems for individual or collective requirements. The units arrive on site ready to be connected mechanically and electrically and capable of immediate start-up. Faster and Simpler Specifications Save time on your building’s HVAC system design with a pre-engineered solution that includes shared components across the DELTA product range, providing readily available selections, pricing, and submittals; and delivering shorter lead times with consistent design and quality. Faster and Simpler Specifications Save time on your building’s HVAC system design with a pre-engineered solution that includes shared components across the DELTA product range, providing readily available selections, pricing, and submittals; and delivering shorter lead times with consistent design and quality.

VIDEO
