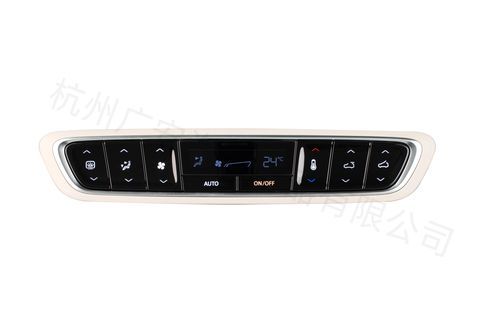

Automatic HVAC system controller ACP100

CAN BusLIN

Product name
ACP100

Product category
Automatic vehicle HVAC controller

Product overview
The ACP100 is an in-vehicle automatic HVAC controller that supports dual-zone automatic control and multiple communication and diagnostic protocols. It offers low-power management and various human–machine interaction functions, is compatible with externally controlled variable-displacement compressors, and supports online flashing and networked management.

Main features

• Operating voltage: 12/24V
• Low-power management
• Automatic dual-zone control
• Compatibility with externally controlled variable-displacement compressors
• Supports CAN and LIN communication
• Network management: AUTOSAR
• Supports UDS diagnostics
• Supports BT online flashing
• Linear stepless motor speed control
• Multiple HMI (human–machine interaction) functions
• Anti-cold-air and anti-hot-air comfort functions

Application / notes
Designed for vehicle automatic HVAC systems. Provides communication and diagnostic interfaces for integration into the vehicle network and supports online updates and a variety of HMI scenarios.

Technical specifications

• Operating voltage: 12/24V
• Communication interfaces: CAN, LIN
• Diagnostic protocol: UDS
• Network management: AUTOSAR
• Online flashing: supports BT (Bluetooth)
• Zone control: automatic dual-zone control
• Compressor control: supports externally controlled variable-displacement compressors
• Power management: low-power management
• Motor speed control: linear stepless control
• HMI: multiple human–machine interaction functions
• Comfort features: anti-cold-air and anti-hot-air functions
