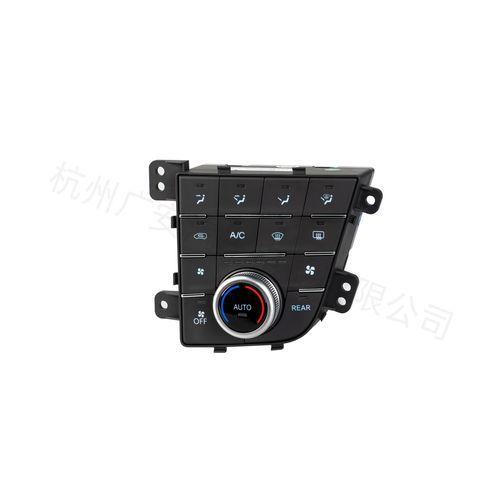

Automatic HVAC system controller ACP113

CAN BusLIN

Product
Automatic air-conditioning controller ACP113

Category
Automatic air-conditioning controller

Technical description
The ACP113 is an automatic air-conditioning controller designed for vehicle HVAC systems. It operates at 12/24 V and features low-power management, automatic dual-zone temperature control and external control capability for variable-displacement compressors. The controller supports CAN and LIN communications, integrates AUTOSAR-compatible network management, and provides UDS diagnostic access. Firmware updates can be performed online via Bluetooth (BT). The unit supports linear stepless fan speed regulation, multiple HMI functions and anti-cold-air / anti-hot-air protection.

Key features

• Operating voltage: 12/24 V
• Low-power management
• Automatic dual-zone temperature control
• External control for variable-displacement compressor
• Supports CAN and LIN communication protocols
• AUTOSAR-compatible network management
• UDS diagnostic protocol support
• Bluetooth (BT) support for online flashing
• Linear stepless fan speed regulation
• Multiple HMI (human–machine interaction) functions
• Anti-cold-air and anti-hot-air protection

Technical specifications

• Voltage: 12/24 V
• Power management: low-power mode
• Control zones: dual-zone automatic control
• Compressor control: external variable-displacement control
• Communication interfaces: CAN, LIN
• Network management: AUTOSAR-compatible
• Diagnostics: UDS
• Firmware update: Bluetooth online flashing
• Fan control: linear stepless regulation
• HMI: multiple interaction functions
• Protection: anti-cold-air and anti-hot-air functions
