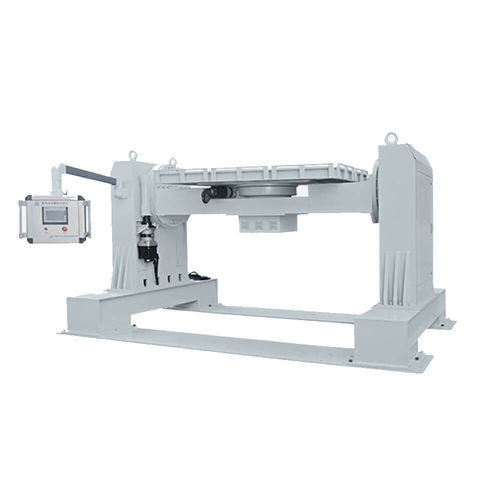

Battery Pack Rotate Tester for Automotive Applications
Single storage cell safety test
1.Test object: Battery storage pack or system
2.Rotate the battery pack 360°around X axis with rotation speed of 6°/s; secondly rotate it 90°,180°,270°,360°,and remain for one hour after each move. Then stop and observe for 2 hours.
3.Rotate the batter pack 360°around Y axis with rotation speed of 6°/s; secondly rotate it 90°,180°,270°,360°,and remain for one hour after each move. Then stop and observe for 2 hours.
4.Accept standard: Battery pack or system has no electrolyte leakage, no rupture at case, no fire nor explosion. And remain the connection reliable, the structure intact, the insulation resistance value not less than 100 Omega /v.
Technical Parameters:
Rotation Angle-360°~+360°(adjustable)
Rotate Speed1°/s—12°/s adjustable
Rotate DirectionX/Y axis automatic switching
Max.Test SpaceW2500 X D2000X H1000mmW3000 XD2000 X H1000mm
Max. Test Load1000KG2000KG
Max.Overall DimensionW4650 X D2780X H2400mmW5470 X D2570X H2510mm
Rotate Plate DimensionW2500 X D2000X H100mmW2000 X D1000X H112mm
Equipment WeightApprox 5 TonsApprox 8 Tons
Control ModePLC touch screen control + PC remote control (Dual Control)
Running mode1. Programming mode: adopt fully automatic design, after the battery pack is placed on the rotating plate, press the start button. The whole test will be Auto-completed according to the program. The rotation of X/Y axis can be switched automatically without manual adjustment.
2.Fix Value mode.
WorkbenchThe rotation of X/Y axis can be switched automatically.
