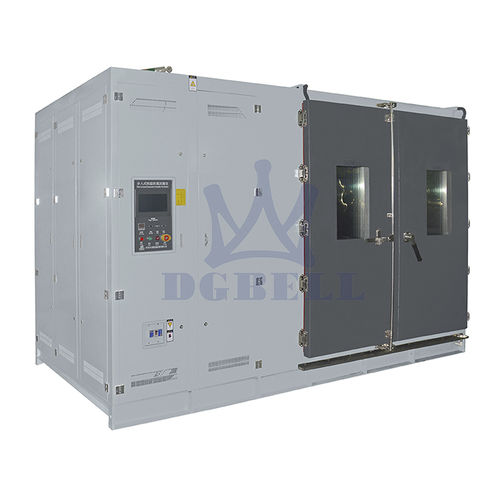

Climate chamber TEMPEBTHW-80M
humiditytemperaturestability

Climate chamber - TEMPEBTHW-80M - Guangdong Bell Experiment Equipment Co., Ltd - humidity / temperature / stability
Climate chamber - TEMPEBTHW-80M - Guangdong Bell Experiment Equipment Co., Ltd - humidity / temperature / stability
Climate chamber - TEMPEBTHW-80M - Guangdong Bell Experiment Equipment Co., Ltd - humidity / temperature / stability - image - 2
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
stability
Product applications
for materials testing machines
Application domain
for quality control
Configuration
walk-in
Other characteristics
stainless steel, high-capacity, constant
Temperature

Min.: -70 °C
(-94 °F)

Max.: 90 °C
(194 °F)

Interior length

2,000 mm, 2,500 mm, 3,000 mm, 4,000 mm, 5,000 mm
(78.74 in, 98.43 in, 118.11 in, 157.48 in, 196.85 in)

Interior height

2,000 mm, 2,200 mm, 2,500 mm
(78.74 in, 86.61 in, 98.43 in)

Interior depth

1,500 mm, 2,000 mm, 2,500 mm, 3,000 mm, 8,000 mm
(59.06 in, 78.74 in, 98.43 in, 118.11 in, 314.96 in)

External length

3,350 mm, 3,850 mm, 4,200 mm, 4,350 mm, 5,200 mm
(131.9 in, 151.6 in, 165.4 in, 171.3 in, 204.7 in)

External height

2,280 mm, 2,480 mm, 2,780 mm
(89.76 in, 97.64 in, 109.45 in)

External depth

1,800 mm, 2,300 mm, 2,800 mm, 4,350 mm, 9,700 mm
(70.87 in, 90.55 in, 110.24 in, 171.26 in, 381.89 in)

Description

Walk in stability test chamber also called Walk-in Temperature and Humidity Test Chambers,it perfectly meet the large size test application that requires high temperature and high humidity. The chamber is constructed with structural steel, the steady structure able to test the large components and products. The various optional function is available for different test standards and requirements. Features: 1. Energy efficient technology, more stable, durable longevity. 2. Steel structure, Stainless steel interior cabinet, easy to clean. 3. Test data logging output with USB memory stick. 4. RS485 and Ethernet remote control. 5. Alarm notification via phone available. 6. Programmable Standard Compliance: • IEC68-2-1 (GB/T2423.1-2008) • IEC68-2-2 (GB/T2423.2-2008) • IEC68-2-3 (GB/T2423.3-2006) • IEC68-2-30 (GB/T2423.4-2008) • IEC68-2-14 (GB/T2423.22-2008) • MIL-STD-810D (GJB150.3A-2009) • MIL-STD-810D (GJB150..4A-2009) • MIL-STD-810D (GJB150.9A-2009) Performance parameters: Humidity Range: 20%RH-98%, RH Low humidity: Maximum 5%R.H. Temperature Fluctuation: ≤±0.5℃ Temperature Deviation: ≤±2℃ Temperature Uniformity: ≤±2℃ Humidity Fluctuation: ≤±2.5% Humidity Deviation: ≤+2/-3%R.H. (when humidity ＞75%RH), ≤±5RH% (when humidity ＜75%RH） Heating RateApprox: 1~ 3℃/mins，average non-linear ,no load Cooling RateApprox: 0.5~ 1℃/ mins，average non-linear ,no load Temperature Overshoot: ≤±2℃ Internal Material: 1.0mm thick SUS#304 high &low temperature resistance stainless steel. External Material: 1.2mm thickness High temperature spray powder coated galvanized plate
