battery High and low temperature test cooler
Application
Flow resistance test
Heat dissipation efficiency test
Voltage drop test
Thermal fatigue test
Withstand voltage test
Pulse test
High and low temperature simulation test
High/low temperature damage/start/operation

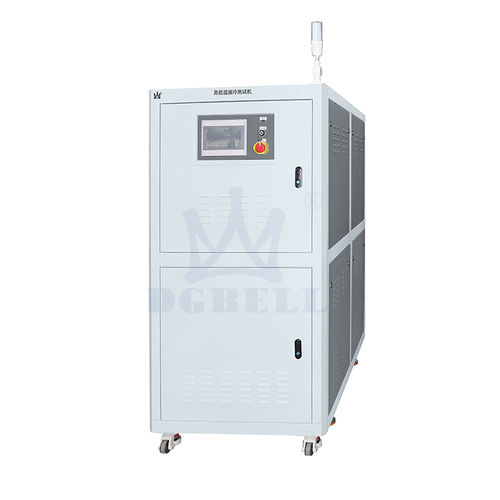

The battery liquid cooler is specially used for thermal and fluid mechanics testing of liquid cooled battery packs. According to the requirements of the performance test of the liquid cooled battery pack, it has built-in a variety of high-performance sensors, which can test the flow, pressure, temperature, sealing of the liquid cooled battery pack, and can provide the full temperature zone temperature imitation, pressure imitation, flow imitation and so on. The product supports communication mode such as CAN and RS485, and supports communication with host computer and charge and discharge tester.
The battery pack liquid cooler has built-in heater and refrigeration unit, and adopts multi-PID control mode, which can simulate various working conditions of the battery pack in actual operation to test the reliability and stability of the battery pack.
Parameters of refrigerating/heating power, flow, temperature and pressure can be customized
Model - Temp. Range - Flow Range - Pressure Range - Temp. System - Cooling Method
Battery Pack -
HY10-DF/S - -40~+85ºC - 1-30L - 0-300kap - Single temp. zone and single channel - Air-cooled / water-cooled
