Diesel generator set Perkins
three-phasestationaryair-cooled

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Cooling system
air-cooled
Applications
industrial
Power in kVA

2,420 kVA
(3,290.28 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Description

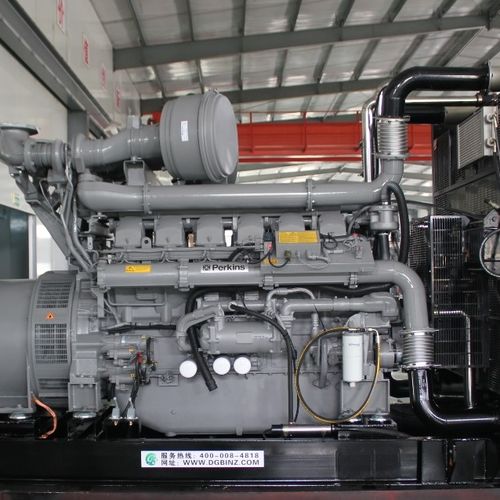

Product Name:2420kVA Perkins Diesel Generator Set(10kVA-2500kVA) Model No.:BPX2420 Minimum Order:1 Product Abstract: 2420kVA Perkins Diesel Generator Set: Prime Power 1760kW/2200kVA; Standby Power 1936kW/2420kVA; Engine model: 4016-61TRG3A; Fuel cons.100%(L/H): 440 ; Cyl. arrangement: 16V; Intake type: Turbocharged; Type of governor: Electronic governor; Frequency: 50Hz/60Hz; Rated speed: 1500/1800rpm; Phase/Wires: 3 phase 4 wires; Displacement(L): 61.1 ; Dimension(mm): 6000x2800x3500; Weight(kg): 15000; Alternator: Stamford, Marathon, Leroy Somer, Faraday, Engga; Automatic controller: Deep Sea and Hassan. Perkins Generator Set 2420KVA: 50Hz, 1500rpm, 380/220v, 400/230v (adjustable) Performance Feature 1)Engine and alternator shall be mounted on a same frame steel skid. 2)Built-in damper for anti-vibration. 3)Small size, low weight, easy to operating, installation and maintenance. 4)World most famous brand diesel engine. 5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC. 6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485 7)Full range protect function and alarm shutdown feature. Alternator Feature 1)Brush-less, 4 poles, rotation magnet. 2)IP21-23(NEMA1) enclosure is standard for all industrial alternators. 3)The insulation system is Class H 4)Simple installation and maintenance, with easy access to terminals, rotating diodes 5)Wide range of flange adaptors and single bearing disc coupling. 6)Standard 2/3 pitch windings avoid excessive neutral currents 7)AVR auto voltage regulator, auto exciter, auto adjustment
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
