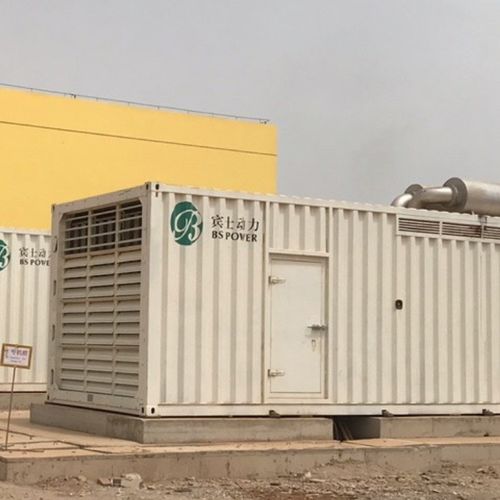

Diesel generator set Perkins
three-phasecontainerizedair-cooled

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized
Cooling system
air-cooled
Applications
industrial
Power in kVA

Min.: 10 kVA
(13.6 hp)

Max.: 2,500 kVA
(3,399.05 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Description

Product Name:Container Type Perkins Diesel Generator Set(10kVA-2500kVA) Model No.:BPS2063 Minimum Order:1 Product Abstract: 2063kVA Perkins Diesel Generator Set: Prime Power 1500kW/1875kVA; Standby Power 1650kW/2063kVA; Engine model: 4016TAG1A; Fuel cons.100%(L/H): 367 ; Cyl. arrangement: 16V; Intake type: Turbocharged; Type of governor: Electronic governor; Frequency: 50Hz/60Hz; Rated speed: 1500/1800rpm; Phase/Wires: 3 phase 4 wires; Displacement(L): 61.1 ; Dimension(mm): 5800x2800x3500; Weight(kg): 13500; Alternator: Stamford, Marathon, Leroy Somer, Faraday, Engga; Automatic controller: Deep Sea and Hassan. Product Description Perkins Generator Set 2063KVA: 50Hz, 1500rpm, 380/220v, 400/230v (adjustable) Performance Feature 1)Engine and alternator shall be mounted on a same frame steel skid. 2)Built-in damper for anti-vibration. 3)Small size, low weight, easy to operating, installation and maintenance. 4)World most famous brand diesel engine. 5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC. 6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485 7)Full range protect function and alarm shutdown feature. Alternator Feature 1)Brush-less, 4 poles, rotation magnet. 2)IP21-23(NEMA1) enclosure is standard for all industrial alternators. 3)The insulation system is Class H 4)Simple installation and maintenance, with easy access to terminals, rotating diodes 5)Wide range of flange adaptors and single bearing disc coupling. 6)Standard 2/3 pitch windings avoid excessive neutral currents 7)AVR auto voltage regulator, auto exciter, auto adjustment
