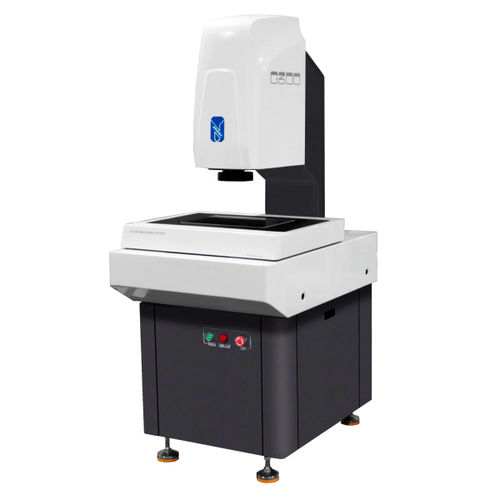

Dimensions measuring instrument G300

positiontransmissiondistance

G Series Auto Video Measuring System Automatic batch measurement, free your hands G series is ideal for a wide variety of industrial inspection applications requiring both vision and tactile measuring. Features ✦High precision automatic measurement, automatic lens, high precision automatic variable times. ✦Air bearing guide rail, no wear and tear, Precision grinding lead screw, highspeed, no clearance, sensitive and reliable, accurate positioning, high motion precision ✦Joystick control automatic functions: automatic focus, automatic measurement automatic edge, lamp light adjustment automatically, automatic switch ratio, ensure the high efficiency of measurement. ✦Software is convenient in operation, and confoming to international Microscope Office software operatinghabits. ✦Four axis automatic loop control. ✦High-resolution high-definition color camera. ✦CNC program high editable. ✦High precision granite base, working platfom, pillar, ensure the long-term stability. Specification: • Measuring range(mm)(X·Y·Z) : - 300x200x200 • Repeatability（μm） : 1.0 • CCD : Color Camera • Magnification : Lens 0.7X-4.5X,Monitor magnification :40X-245X • Working distance : 82mm • Software : JINUOSH A-VM SYSTEM software • Linear scale resolution : 0.1μm • Driving system : • CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control • lllumination : White LED 7 ring 8 region 32 phase programmable ring light source,Green LED transmission light source + coaxial light source • Weight : 310KG • Dimension(mm)(L·W·H) : 640×910×1650
