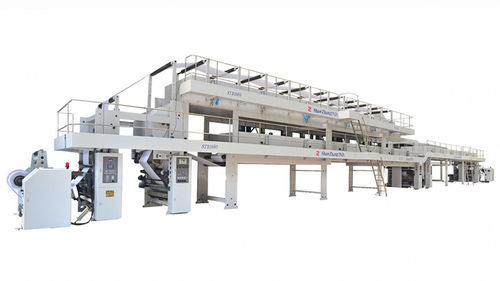

Automatic coating line SC-CCP120

with drying

Roll Coater Type SC-CCP120, Ceramic Transfer Paper Coating Drying Line SC-CCP120 ceramic transfer paper coater is a newly developed coating machine. It is mainly used for roll coating on ceramic transfer paper, kraft paper, coated paper, etc. This roll coater adopts anilox roll with engraved pattern, which applies coating on webs with four times on front side and one time on backside. Equipped with advanced automatic control technical and drying system, multiple processes can be finished in one operation, including web unwinding, receiving, coating, drying, secondary coating, secondary drying, calendering, rewinding. Specifications Machine speed: 120m/min Coating method: anilox roll, coating four times on front side and one time on backside of web Coating substrate: paper 100-170g/㎡, thickness: 12μ-30μm Coating thickness: 25-30μm Tension range: 200-600N/full width Configurations Unwind unit 1. Reversible independent turret unwinding with dual-shaft double working positions. 2. Edge position control (EPC) for automatic web guiding. Coating unit 1. Anilox roll is used in coating process, driven by independent inverter motor with gear coupling. 2. With back-up roll and smooth roll, simultaneous tension is controlled by PLC system. Calendering and cooling unit 1. Calender roll has a hard chrome plated surface, and treated with mirror polishing. The maximum pressure force reaches 3000Kg/full width which is adjustable. Steel back-up roll is equipped. 2. Cooling roll is made of hard chrome plated steel, the cooling method of which is circulating water cooling. Rewind unit 1. Reversible independent turret rewinding with dual-shaft double working positions.
