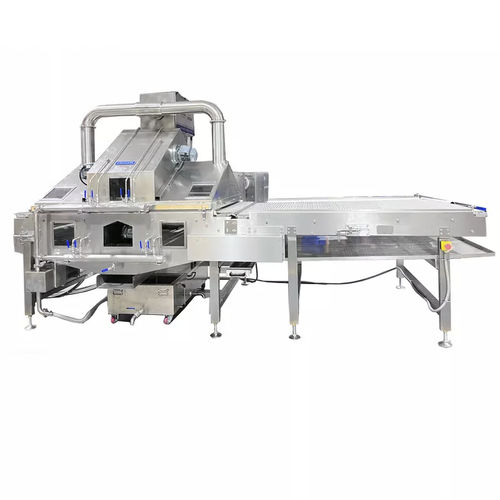

Oil sprayer PY1000
stainless steelfor the food industry

oil sprayer
oil sprayer
oil sprayer
Add to favorites
Compare this product


Sprayed material
Other characteristics
stainless steel, for the food industry


it sprays atomized oil with high speed on the up and down surface of biscuits, it can improve the color, smell, and taste of biscuits, the excessive oil can be recycled through filter, and reuse through conveyor. Parameter: 1. Spraying method: centrifugal spin plate 2. Number of spinners: 8, each controlled by independent motors 3. Working width: 1000mm 4. Dimensions: 4000X1360X1500 Weight: 1.2T , Power: 5KW 5. Oil cover and tank are all stainless steel 6. The conveyor frame plate uses stainless steel 7. The mesh belt support strip uses food-grade nylon material, 8. The conveyor belt uses stainless steel chain net, the pitch is 12.7, the net belt does not deviate 9. Fuel injection volume adjustment method: inverter control 10. Working oil temperature: up to 80℃, adopts indirect heating method of electric heating water, and the temperature can be adjusted at will 11. The enclosure uses 1.5mm304 stainless steel material 12. The surface of roller, transition knife, etc. are plated with hard chrome 13. Transition method: small roller flat transition 14. The main drive adopts chain drive 15.Oil filter length: 2 meters 16. The weight error of biscuits after spraying does not exceed 3% 17. The oil spray department is equipped with an oil mist recovery device, which is clean and hygienic 18. Adopt no sanitary dead angle structure design, safe and sanitary 19. Install safety protection devices such as emergency stop switches 20. SEW/Siemens for conveyor belt, oil pump motor, reducer, frequency conversion speed regulation 21. Speed digital display
