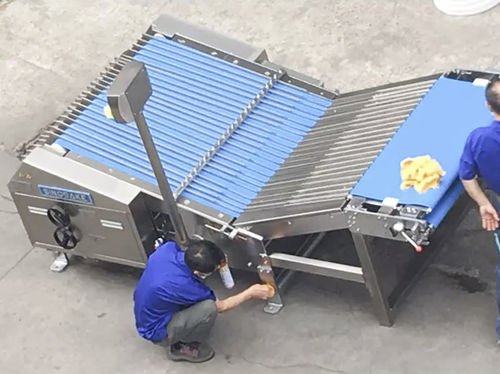

Biscuit sorting machine LB1000

for the food industryautomaticbelt

it is used for sorting the biscuits before packaging, to make the packaging work easy. Parameter： 1. Belt roller diameter: (Ø100), surface covered with rubber, single side thickness 10mm 2. Roller diameter of transition knife: Ø16 3. Dimensions: 3400X1760X1180 Weight: 1.5(T), Power: 1.5KW 4. Conveyor belt: imported PU belt, thickness 1.3mm, width 1150mm , the conveyor belt adopts manual tension, pneumatic adjustment 5. Transition method: small roller flat transition 6. The way of biscuit management: star wheel 7. Independent motor control of star wheel 8. All stainless steel for conveying racks and pallets 9. The cylinder uses Korean famous brand YSC 10. Adopt no sanitary dead angle structure design, safe and sanitary 11. Install safety protection devices such as emergency stop switches 12. SEW/Siemens for motor and reducer, frequency conversion speed regulation 13. The circuit layout is neat and beautiful, and the wire trough uses aluminum alloy (when equipped with a production line) 14. Control appliances mainly use French brands: Schneider 15. Bearings use Japanese brand: NSK
