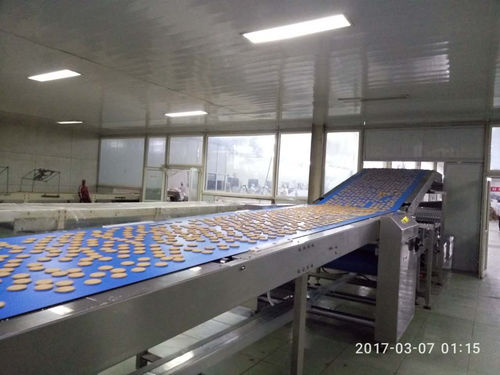

Belt conveyor LQ1000

straightZ typecooling

It is used for cooling and conveying the biscuits in normal condition. Parameter 1. It can be designed into a straight type, three-layer "Z" structure or suspended overhead structure according to customer requirements 2. Belt roller diameter: Ø240, surface covered with rubber, single side thickness 10mm 3. Section size: 1700X950weight: 0.6 (T/M), power: 1.5-2.2KW 4. Conveyor belt: imported PU belt, thickness 1.3mm, width 1100mm , automatic deviation adjustment, manual tensioning 5. Transition mode: small roller flat transition, transition knife roller diameter: Ø16 6. All stainless steel for conveying racks and pallets 7. The cylinder uses Korean famous brand YSC 8. Adopt no sanitary dead angle structure design, safe and sanitary 9. Install safety protection devices such as emergency stop switches 10. SEW/Siemens for motor and reducer, frequency conversion speed regulation 11. The line layout is neat and beautiful, and the wire trough uses aluminum alloy (when equipped with a production line) 12. Control appliances mainly use French brands: Schneider 13. Bearings use Japanese brand: NSK
