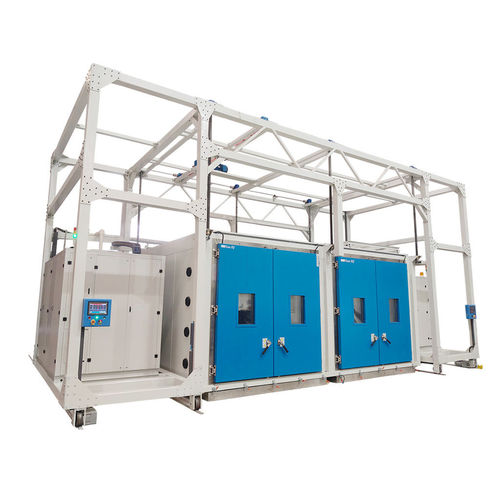

Electronics test system EVTH series

performancevibrationdurability

Three-combination test chamber Widely used in aviation, aerospace, shipbuilding, defense, electrical engineering, electronics, automotive, motorcycle, telecommunications, and scientific research industries. Designed to assess the reliability of electrical/electronic products, instruments, and equipment during transportation, storage, and operation. Technical Specifications 3-Axis AGREE Environmental Test Chamber Temperature Range70℃ to +180℃ Temperature Fluctuation≤ ± 0.5℃ Temperature Deviation≤ ± 2.0℃ Temperature Uniformity≤  2.0℃ Humidity Range (%RH)※210%98% RH Humidity Uniformity±1.0 % RH Patent Number: ZL 2021 2 2673632.2 1.Structural Design: Monolithic construction with seamless TIG welding for durability and aesthetics. Lever-driven door lock mechanism. 2.Smart Control System: Features a Chinese/English-language color LCD touchscreen HMI + high-performance PLC, powered by TESTEQ's proprietary software for automated, intelligent, and user-friendly operation. 3.Energy Efficiency: Incorporates TESTEQ's patented "Static Balance" technology, reducing energy consumption by over 30% during low-temperature stabilization. 4.Vibration Integration: Gantry Frame System: Worm gear-driven vertical adjustment and lateral positioning via wireless remote. 5.Advanced Sealing: Custom flexible connectors ensure airtight integration between temperature/humidity chambers and vibration platforms. 6.Climate Control: •Dual operation modes: Constant operation & Programmable operation •TESTEQ's patented humidification technology •Eco-friendly refrigerants compliant with international environmental protocols 7.Premium Components: Internationally renowned compressors and critical refrigeration parts ensure long-term reliability. 8.Connectivity: RJ45 communication port + remote control system supporting Modbus/OPC protocols. 9.Surface Finish: Electrostatic powder coating in brand colors - "TESTEQ White" for main body, "TESTEQ Blue" for access doors. Reference Standards: •GB/5170.2-1996: Verification Methods for Environmental Testing Equipment Parameters (Temperature) •GB2423.1-89: Basic Environmental Testing Procedures (Test A: Low Temperature) •GB2423.2-89: Basic Environmental Testing Procedures (Test B: High Temperature) •GB/T2423.3-93: Damp Heat Testing Methodology •GJB150.3-86: Military Equipment Environmental Tests (High Temperature) •GB/T 28046.4, ISO 16750-4, GMW 3172, VW80101, GB/T 10485
