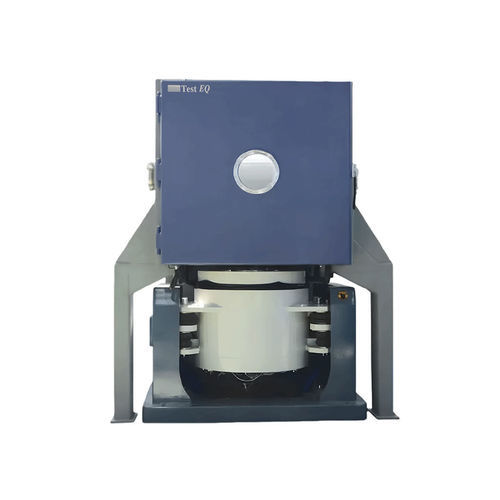

3-axis simulator platform EQTH series

high-frequencymulti-axispayload

The temperature, humidity, vibration and pressure test chamber is a comprehensive environmental testing equipment, mainly used to simulate various environmental conditions, in order to test and inspect electronic and electrical components, spare parts or the experimental departments of related industries provide a simulated environment, to provide conditions for the accuracy and repeatability of the test data. Technical Specifications Capacity245 to 1000L Temperature Range70℃ to +180℃ Temperature Fluctuation≤ ± 0.5℃ Temperature Deviation≤ ± 2.0℃ Temperature Uniformity≤  2.0℃ Humidity Range (%RH)※210%98% RH Humidity Uniformity±1.0 % RH Pressure Range: Atmospheric pressure ~ 0.5kpa(or customize) Feature 1.Integral structure, the internal overall TIG seamless welding, beautiful appearance; Door lock device adopts lever power opening mechanism. 2.The use of Chinese color LCD touch man-machine interface + high-performance programmable controller (PLC), with TESTEQ test box independently developed special software, with automatic, intelligent, human control and other characteristics. 3.Control mode: constant operation mode, program operation mode. 4.TEST EQ patent "Cold and heat balance technology”, low temperature constant temperature season can be more than 30%. 5.Refrigeration compressor and key accessories are selected international and domestic well-known brands, long-term and reliable operation; Environmentally friendly refrigerant, in line with the requirements of international environmental protection conventions. 6.The humidification system adopts TEST EQ patented technology. 7.The lift structure through the lift (wireless remote control) up and down and left and right movement to match the shaking table horizontal or vertical table, comprehensive performance test. 8.Gantry structure: Through worm gear (wireless remote control), the studio box is lifted up and down and the gantry is moved around to match the horizontal or vertical table of the shaking table, and the comprehensive performance is tested. 9.The seal of temperature and humidity box and vibration table adopts TESTEQ patent technology low pressure flexible connection device. 10.Pressure mode: internal pressure type or external pressure type. 11.Vacuum system: the world famous brand ""Laibao"" or ""Jitis"". Meet standard GB/T 2423.1 (IEC60068-2-1); GB/T 2423.2 (IEC60068-2-2); GB/T 2423.3 (IEC60068-2-78); GB/T 2423.4 (IEC60068-2-30) ; GB/T 2423.21 (IEC60068-2-13); GB/T2423.25 (IEC60068-2-40) ; GB/T2423.26 (IEC60068-2-41) ; GB/T2423.26 (IEC60068-2-39) ;GJB 150.2A; GJB 150.3A; GJB 150.4A; GJB150.6A; GJB 150.9A; GJB 150.19A; GJB 150.24A; GJB360A; DO-160G;GB/T10586; GB/T10589; GB/T10590; GB/T10592; GB/T11158.
