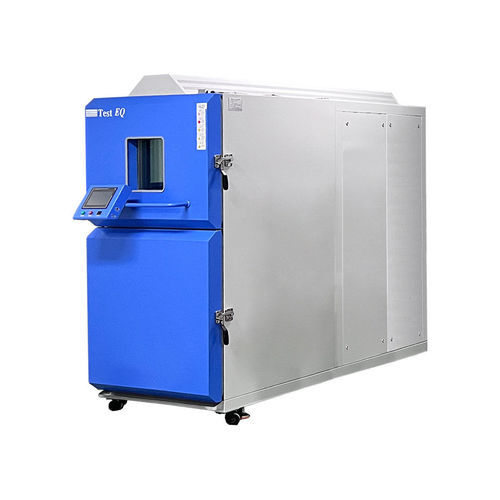

Climate chamber ETS series

thermostatictemperaturehumidity

The thermal shock test chamber is a device used to test the tolerance of materials or products to extreme temperature fluctuations in a rapid manner. It is widely applied in fields such as electronics, automobiles, and aerospace, and is mainly divided into two types: the two-box type and the three-box type. Technical Specifications Capacity : 23 to 125L Temperature Range: -65℃ to +150℃ Preheating Temperature Range: +60℃ to +200℃ Heating Rate: +60℃to +200℃ ≤20min Precooling Temperature Range: -78℃ to 0℃ Cooling Rate: +20℃to -75℃ ≤70min 1.Integral structure,the internal overall TIG seamless welding, beautiful appearance; Door lock device adopts lever power opening mechanism. 2.The use of Chinese color LCD touch man-machine interface + high-performance programmable controller (PLC), with TESTEQ test box independently developed special software, with automatic, intelligent, human control and other characteristics. 3.TESTEQ patent "Cold and heat balance technology",low temperature constant temperature season can be more than 30%. 4.Control mode: constant operation mode, program operation mode. 5.Refrigeration compressor and key accessories are selected international and domestic well-known brands, long-term and reliable operation; Environmentally friendly refrigerant, in line with the requirements of international environmental protection conventions. 6.Two-box type (vertical/horizontal) : independent high greenhouse and low greenhouse, the test sample through the basket up and down (or around) action conversion, to achieve the impact test in the high temperature, low temperature area, temperature recovery time is short, temperature change speed, compact structure, small volume. 7.The one-box test sample has been static, its temperature conversion through the pneumatic system to open (close) different air doors to achieve, easy to carry out online testing, reduce the mechanical impact on the test sample. Room temperature exposure test can be performed. 8.Configure RJ45 communication interface and remote control system (open data transmission protocol supports Modbus/OPC). 9.Surface electrostatic powder spraying; Box color"TESTEQ White", Controller panel color "TESTEQ Blue". Thermal Shock Chamber: -70℃~150℃, ≤5min recovery, meets MIL-STD-810. Ideal for PCB/IC reliability testing. ESS Environmental Chamber: Humidity 20%~98% RH, supports GB/T 2423 standards. 40% energy saving vs. competitors. Liquid-to-Liquid Shock Tester: LN₂ cooling to -196℃, 15s transition time. For aerospace materials validation. Thermal Cycling Equipment: 25℃/min ramp rate, 1000L capacity. JESD22-A104 compliant. Benchtop Thermal Chamber: -65℃~150℃, 65dB low noise. Lab-use with USB data export. Standard International standard IEC 60068-2-14 "Environmental Testing - Part 2: Test Methods - Test N: Temperature Variation" - Environmental Test 2. National Standard GB/T 2423.22 "Environmental Testing - Part 2: Test Methods - Test N: Temperature Variation" - Domestic Electrical and Electronic Products 3. Military Standard GJB 150.5 "Military Equipment Laboratory Environmental Test Methods - Part 5: Temperature Shock Test" - Military Equipment and Components 4. Industry Standard MIL-STD-810H "Environmental Engineering Considerations and Laboratory Tests", ISO16750 "Road Vehicle Electrical and Electronic Equipment" - Specific Fields such as Military, Automotive Electronics, etc.
