Climate chamber CN201520670413.0
humiditytemperaturevibration

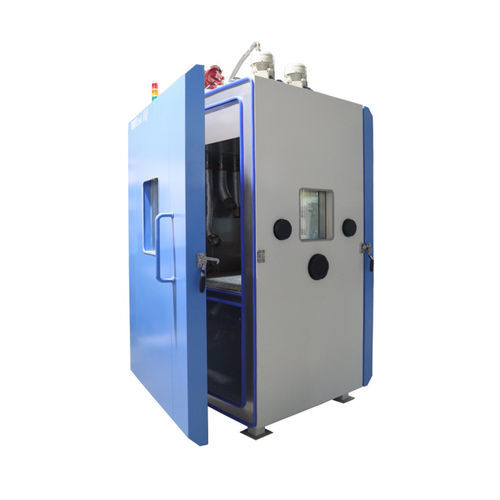

Climate chamber - CN201520670413.0 - Guangdong Test EQ Equipment co., Ltd - humidity / temperature / vibration
Climate chamber - CN201520670413.0 - Guangdong Test EQ Equipment co., Ltd - humidity / temperature / vibration
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
stress, vibration, HALT
Product applications
for semiconductors
Application domain
for quality control
Protection level
corrosion-resistant
Other characteristics
accelerated
Capacity

Min.: 215 l
(56.8 gal)

Max.: 1,100 l
(290.59 gal)

Temperature

Min.: -100 °C
(-148 °F)

Max.: 200 °C
(392 °F)

Power

27,000 W, 32,000 W, 48,000 W, 64,000 W, 83,000 W

Interior length

610 mm, 670 mm, 760 mm, 914 mm, 1,070 mm
(24.02 in, 26.38 in, 29.92 in, 35.98 in, 42.13 in)

Interior height

580 mm, 670 mm, 760 mm, 914 mm, 965 mm
(22.83 in, 26.38 in, 29.92 in, 35.98 in, 37.99 in)

Interior depth

610 mm, 700 mm, 760 mm, 914 mm, 1,070 mm
(24.02 in, 27.56 in, 29.92 in, 35.98 in, 42.13 in)

External length

1,330 mm, 1,570 mm, 1,730 mm, 1,886 mm
(52.4 in, 61.8 in, 68.1 in, 74.3 in)

External height

1,300 mm, 2,030 mm, 2,185 mm, 2,440 mm
(51.18 in, 79.92 in, 86.02 in, 96.06 in)

External depth

910 mm, 1,060 mm, 1,214 mm, 1,370 mm, 2,370 mm
(35.83 in, 41.73 in, 47.8 in, 53.94 in, 93.31 in)

Description

Combine temperature and vibration for stress testingMeet standards MIL-STD, ISO, NASACapacity: 215 to 1100L (Customizable)Temperature Range: -100 to +200℃Consistency: ≤20% (Higher than the industry standard)Heating & Cooling Rate (average): 100℃/minVibration Frequency Range: 5 to 10,000HzVibration range: 5 to 100GRMSVibration Overshoot: ≤2GRMsPatent Number: CN201520670413.0Rapid Temperature Cycling: Achieves rates up to 100°C/min for accelerated stress screening hass.Multi-Axis Vibration: Combines pneumatic (6-DOF) and electrodynamic vibration for multi-stress accelerated life testing halt simulations.Precision Control: halt process ±0.5°C temperature uniformity and real-time monitoring.Customizable Profiles: Supports user-defined stress protocols (step-stress, dwell times).Durability: Robust construction with corrosion-resistant materialsTesting StandardsMilitary Standards (MIL-STD): MIL-STD-810, MIL-STD-883, MIL-STD-202, MIL-STD-750Aerospace & Satellite Standards: RTCA DO-160, NASA GSFC-STD-7000, ECSS-Q-ST-30, AIAA S-114Automotive Industry Standards: IEC 60068, ISO 16750, SAE J1211, OEM-Specific Standards (Ford WARR, GM GMW 3172, Volkswagen TL 82066)Electronics Industry Standards: IPC-9592, JEDEC JESD22, Telcordia GR-468-CORE, IEC 60749General International Standards: IEC 60068-3-1, IEEE 1624Additional OptionsReliability Testing: Highly accelerated stress screening test for electronics, automotive components, aerospace systems, and medical devices.Failure Analysis: Identifies design weaknesses and manufacturing defects.Production Screening: Ensures product robustness via HASS (Highly Accelerated Stress Screening) in mass production.R&D Validation: Validates product lifespan under extreme conditions (temperature, vibration, humidity).Technical SpecificationsSerial numberCapacity ( m3 )0.2150.3140.4390.7641.11ModelHALT   HASS ChambersΕΤΗ2-410ΕΤΗ2-510ETH2-610ETH2-760ΕTH2-9102Internal Dimension (WxHxD mm)610x580x610670×670×700760x760x760914x914x9141070x965x10703External Dimension (WxHxD mm)1570x2030x9101330×1300×23701570x2030x10601730x2185x12141886x2440x13704Temperature Range-100 to +200℃5Heating & Cooling Rate (average)100℃/min (standard support for 30℃/min to 70℃/min for option)6Table Dimension (mm)410x410510x510610x610760x760910x9107Vibration Acceleration (Grms)≥100g (under no-load condition)8Vibration Frequency Range5 to 10,000Hz9Vibration range5 to 100GRMS10Vibration Overshoot≤2GRMs11Max.Load (kg)4055709515012Actuators(pcs)34691313Liquid Nitrogen Consumption25～60L/min (Liquid Nitrogen Pressure at 2.8~3.5 Bar）14Compressed Air Consumption400L/min400L/min990L/min1130L/min1950L/minAir pressure at 7Bar15Windows(pcs)1122216Viewing window Dimension WxD (mm)300x300300x300300x360380x480380x52017Door(pcs)1122218Vibration MonitoringTwo vibration channels for users with real-time monitoring of product vibration. The analysis of acceleration response spectrum19Power supplyAC380V 3phase 5lines 50/60Hz20Electrical ServicePower ( KW )2732486483Current ( A )50508615017521Weight(kg)4104208601133181422※1 When the vibration table is in the high position and when it is in the low position※2 These models are for reference only. For more detailed technical specifications, please consult your sales representative.Capacity: 215 to 1100L (Customizable)Temperature Range: -100 to +200℃Consistency: ≤20% (Higher than the industry standard)Heating & Cooling Rate (average): 100℃/minVibration Frequency Range: 5 to 10,000HzVibration range: 5 to 100GRMSVibration Overshoot: ≤2GRMsPatent Number: CN201520670413.0
