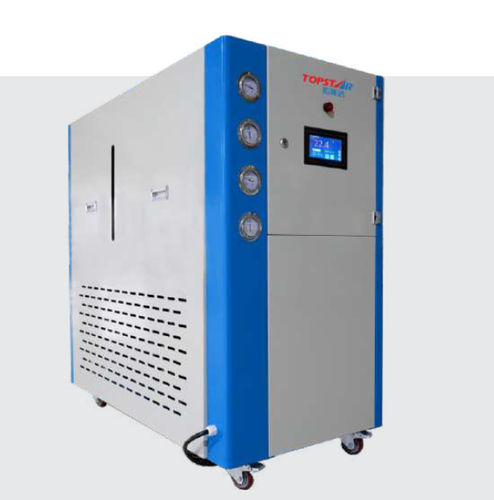

Water chiller TCW

stainless steelhigh-pressurelow-pressure

Water Chillers adopt shell-shape condensers with the features of rapid heat transmission and excellent heat dispersion. This series can be afforded cooling ranges from 5~35℃, even lower to 3℃ (temperature controlled accuracy at ±2℃). The compressors' power range from 5HP~50HP and cooling capacities range from 13416~130720Kcal/hr. Features • - To adopt imported superb compressors and pumps to ensure safe& quietrunning, power saving and durable service iife. • - To employ microcomputer with easy opération which can control temperature within 5 to 35 precisely. • - Unique design for condenser and heat- dispersion unit resuit in excellent heat-exchange effect. • - To equip with electrical current overload protection, high & low-pressure switch, electronic timer delay safety device. It will alanm to display faulty while any malfunction occurs. • - To adopt with internai 304 stainless steel insulated water tank with durable service Iife for easy cleaning & maintenance. • - Complété safety devices including power reverse phase & power short phase and anti-freeze protection. • - Ultra low temperature type of chillers can reach below -lO'C. • - Chillers for anti-alkaline & anti-acid type can be customized.
