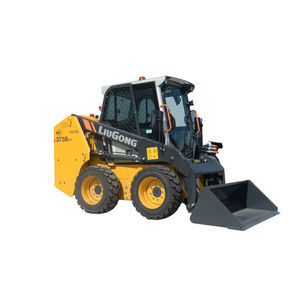

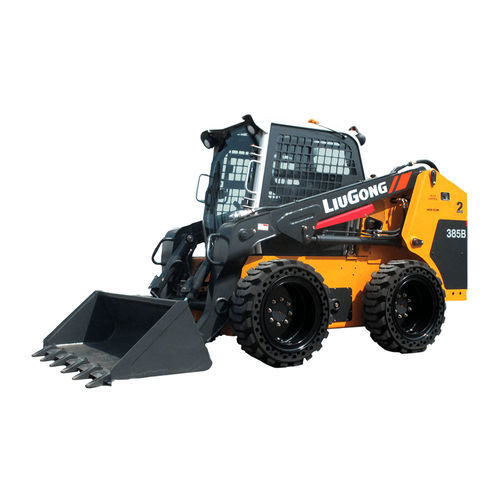

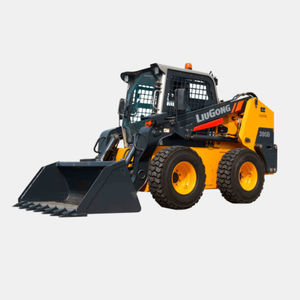

Diesel skid steer loader CLG385B MAX

Overview

• Delivering strong performance, versatility and ease of operation, the CLG385B MAX skid steer loader is suitable for construction, landscaping, agriculture and municipal work.
• Multiple attachments expand machine capabilities, enabling bucket, fork, sweeper, milling, auger, lift-arm and snowplow operations with one unit.
• Simulation-based mission learning optimizes power delivery and fuel efficiency. With normal maintenance the engine can reach 8,000 hours before first overhaul, reducing maintenance costs by 25–30%.

Key Specifications

• Rated operating capacity: 1,045 kg
• Rated power: 63.9 kW

Industries

• Ports
• Municipal
• General

Product table
Engine Rated Power: 63.9 kW
Rated Operation Capacity: 1,045 kg
Dump: 2.8 s
Tipping Load: 2,090 kg
Dump Clearance - Full Height: 2,572 mm
Bucket capacity: 0.5 m³
Emission: Stage III
Operating Weight: 3,750 kg
Raise: 4.2 s
Lower (empty, float down): 2.5 s
Bucket Breakout Force: 29.81 kN
Dump Reach - Full Height: 587 mm
Engine Model: Yanmar 4TNV98T-ZCNLYSC


Technical specifications

• Engine Rated Power: 63.9 kW
• Rated Operating Capacity: 1,045 kg
• Operating Weight: 3,750 kg
• Tipping Load: 2,090 kg
• Bucket capacity: 0.5 m³
• Bucket Breakout Force: 29.81 kN
• Dump: 2.8 s
• Raise: 4.2 s
• Lower (empty, float down): 2.5 s
• Dump Clearance - Full Height: 2,572 mm
• Dump Reach - Full Height: 587 mm
• Emission: Stage III
• Engine Model: Yanmar 4TNV98T-ZCNLYSC
