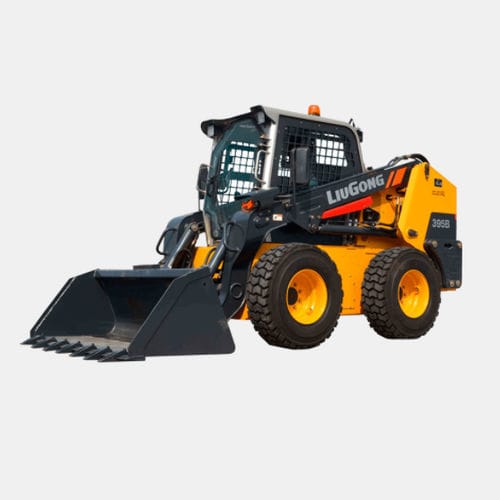

Diesel skid steer loader CLG395B

Overview

• The LiuGong skid steer loader CLG395B provides performance, versatility and ease of operation for construction, landscaping and agricultural tasks.
• Interchangeable attachments expand functionality so a single machine can perform multiple jobs.

Key specifications

• Rated operating capacity: 1,133 kg
• Rated power: 70 kW (94 hp / 95 ps)
• Bucket capacity: 0.55 m³

Industry applications

• Construction
• Landscaping
• Agriculture
• Ports and municipal works

Product specifications
Emission: Stage III
Engine Rated Power: 70 kW (94 hp / 95 ps) @ 2,300 rpm
Rated Operation Capacity: 1,133 kg
Engine Model: Perkins 1104D-44T
Operating Weight: 3,850 kg
Bucket capacity: 0.55 m³
Tipping Load: 2,267 kg
Bucket Breakout Force: 32.2 kN
Raise: 4.54 s
Lower (empty, float down): 2.67 s
Dump (cycle): 3.22 s
Dump Clearance - Full Height: 2,572 mm
Dump Reach - Full Height: 587 mm

Technical specifications

• Emission standard: Stage III
• Engine model: Perkins 1104D-44T
• Rated power: 70 kW (94 hp / 95 ps) @ 2,300 rpm
• Rated operating capacity: 1,133 kg
• Operating weight: 3,850 kg
• Bucket capacity: 0.55 m³
