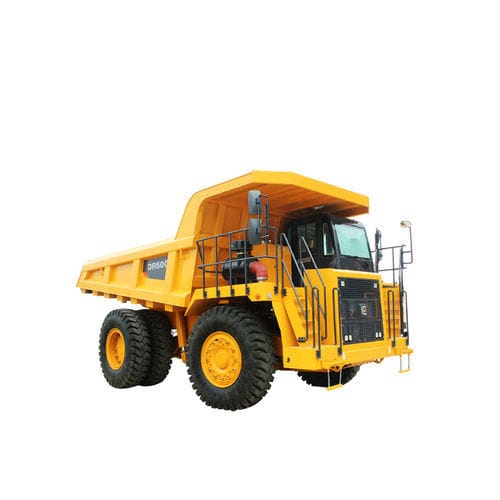

Rigid dump truck DR50C

combustion enginediesel enginemining and quarrying

Overview

• With fast cycle times and a large payload, the DR50C increases tons moved per hour to improve return on investment.
• LiuGong provides a low empty vehicle weight and a durable lightweight frame to optimize carrying efficiency.
• Full hydraulic control system with independently controlled brake circuit and added relay valves improves response speed and vehicle safety.
• Equipped with a Cummins QSX15 engine offering high fuel economy and long service life (over 60,000 hours) for heavy-load operation.

Key specifications
Rated power: 388 kW
Rated operating load: 45000 kg
Body capacity: 21.8–29.8 m³

Product specifications (table)
Operating weight: 36800 kg
Gross machine weight: 81800 kg
Heaped capacity (SAE 2:1): 29.8 m³
Struck capacity: 21.8 m³
Emission regulation: Tier 3 / Stage III
Transmission model: Allison
Maximum travel speed: 55 km/h
Tire: 15.00/3.0-35
Engine model: Cummins QSX15
Rated power: 388 kW (528 hp) @ 2100 rpm
Type: Automatic
Dimension (L×W×H): 8927×4200×4310 mm
Expected service life: more than 60,000 hours

Technical features

• Full hydraulic control with independent brake circuit and relay valves for faster response and improved safety.
• Box-section welded chassis with cast components in high-stress areas for extended durability.
• Dual-pump combined hydraulic system to reduce power loss and a large top-mounted hydraulic oil tank to protect the pump.
• Disc service and parking brakes to enhance braking performance and safety.
• Cummins QSX15 engine for proven reliability, fuel efficiency and long service intervals.
