Asphalt paver 506E
crawlerfor construction equipment

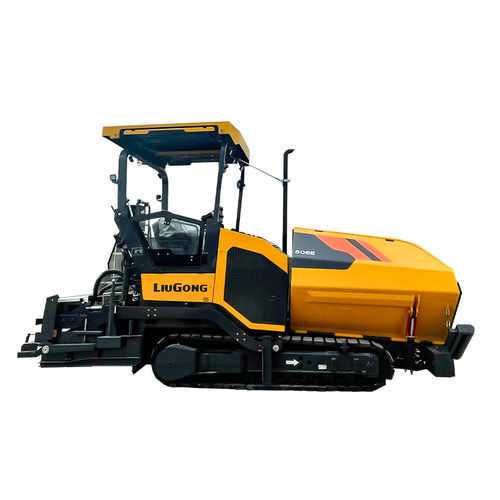

Asphalt paver - 506E - Guangxi Liugong Machinery Co., Ltd. - crawler / for construction equipment
Asphalt paver - 506E - Guangxi Liugong Machinery Co., Ltd. - crawler / for construction equipment
Add to favorites
Compare this product

Characteristics

Type
asphalt
Locomotion
crawler
Product applications
for construction equipment
Working width

Max.: 6 m
(19'08" )

Min.: 2.5 m
(8'02" )

Description

Product overview
  • The 506E asphalt paver integrates an intelligent CAN digital control system to set, monitor and record key performance parameters for consistent laydown quality.
  • Dual hydraulic conveyor systems with automatic leveling ensure even material distribution across the full paving width.
  • Hopper positioned to minimize material impact; available in standard 12 t configuration or optional large-capacity 16 t arrangement.
  • Efficient powertrain with ECO mode reduces fuel consumption (typical reduction up to 12%) while maintaining productive paving performance.


Key specifications
  • Operating weight: 24,000 kg
  • Rated power: 118 kW (158 hp) @ 2,000 rpm
  • Paving width range: 3–6 / 2.5–6 / 3–5.7 m (variants)
  • Hopper capacity: 12 t (standard) / 16 t (optional)


Technical details
  • Engine model: ShangChai 4H
  • Theoretical productivity: 1000 t/h
  • Paving speed: 0–18 m/min
  • Maximum paving thickness: 350 mm
  • Smoothness: ≤3 mm
  • Tamper: single tamper; tamper frequency 0–30 Hz; tamper swing 5 mm
  • Vibration frequency: 0–40 Hz
  • Paving compactness: ≥90% (asphalt); ≥80% (asphalt / stabilized soil)
  • Fuel tank capacity: 210 L
  • Dimensions (W×L×H): 3200 mm × 6150 mm × 3800 mm
  • Traveling speed: 0–3.5 km/h
  • Gradability: ≥20%
  • Crown adjustment: -1–4%


Applications
  • Designed for highway and urban road construction, airport surfaces, industrial and logistics yards where consistent thickness, smoothness and compaction are required.
  • Suitable for contractors seeking a balance of productivity, fuel efficiency and precise material control.
