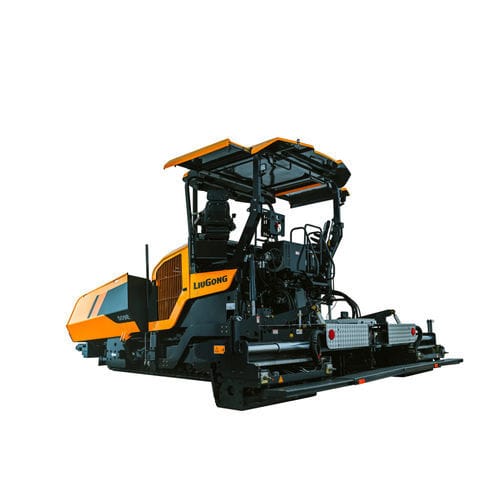

Asphalt paver 509E

crawlerfor vehiclesfor construction equipment

Product description

• Intelligent CAN control system for setting and monitoring paving parameters to ensure consistent result and operator feedback.
• Automatic leveling driven by two hydraulic conveyor systems for even material distribution across the screed.
• Large 16 t hopper positioned to minimize material impact and facilitate smooth feeding.
• Efficient powertrain with ECO mode to reduce fuel consumption and operating costs (up to ~12% fuel saving depending on conditions).

Key specifications (summary)
Operating weight: 27,300 kg
Rated power: 169 kW (227 hp / 230 ps) @ 2,000 rpm
Paving width range: 2.5–9.5 m (mechanical) / 3–9 m (hydraulic)
Theoretical productivity: 1000 t/h
Hopper capacity: 16 t
Maximum paving thickness: 500 mm
Smoothness: ≤2 mm (per 3 m)
Fuel tank capacity: 350 L
Length: 7350–7560 mm (varies by configuration)
Width: 3540 mm
Height: 3960 mm
Traveling speed: 0–4 km/h
Paving speed: 0–18 m/min
Gradability: 20%

Hydraulic — Technical table
Paving width range: 3–9 m
Theoretical productivity: 1000 t/h
Engine model: Cummins B7
Paving speed: 0–18 m/min
Hopper capacity: 16 t
Smoothness: ≤2 mm (per 3 m)
Tamper frequency: 0–30 Hz
Tamper swing rear: 5 mm
Crown adjustment: -1~4%
Paving compactness (asphalt/stabilized soil): ≥80%
Length: 7,560 mm
Height: 3,960 mm
Maximum paving thickness: 500 mm
Operating mass: 27.3 t
Rated power: 169 kW (227 hp / 230 ps) @ 2,000 rpm
Traveling speed: 0–4 km/h
Gradability: 20%
Tamper type: Single tamper
Vibration frequency: 0–45 Hz
Paving compactness (asphalt): ≥90%
Fuel tank capacity: 350 L
Width: 3,540 mm

Mechanical — Technical table
Paving width range: 2.5–9.5 m
Theoretical productivity: 1000 t/h
Engine model: Cummins B7
Paving speed: 0–18 m/min
Hopper capacity: 16 t
Smoothness: ≤2 mm (per 3 m)
Tamper frequency: 0–30 Hz
Tamper swing rear: 3/5/6/7/8/9 mm
Crown adjustment: -1~4%
Paving compactness (asphalt/stabilized soil): ≥80%
Length: 7,350 mm
Height: 3,960 mm
Maximum paving thickness: 500 mm
Operating mass: 22.3 t
Rated power: 169 kW (227 hp / 230 ps) @ 2,000 rpm
Traveling speed: 0–4 km/h
Gradability: 20%
Tamper type: Double tamper
Tamper swing front: 0/3/6/8.5/12 mm
Vibration frequency: 1–45 Hz
Paving compactness (asphalt): ≥90%
Fuel tank capacity: 350 L
Width: 3,540 mm

Technical characteristics

• Model: 509E
• Brand: LiuGong
• Operating weight: 27,300 kg
• Rated power: 169 kW (227 hp / 230 ps) @ 2,000 rpm
• Paving width range: 2.5–9.5 m (mechanical) / 3–9 m (hydraulic)
• Theoretical productivity: 1000 t/h
• Hopper capacity: 16 t
• Maximum paving thickness: 500 mm
• Smoothness: ≤2 mm (per 3 m)
• Fuel tank capacity: 350 L
• Length: 7,350–7,560 mm (varies by configuration)
• Width: 3,540 mm
• Height: 3,960 mm
• Traveling speed: 0–4 km/h
• Paving speed: 0–18 m/min
• Gradability: 20%
• Tamper type: Single (hydraulic) or Double (mechanical)
• Vibration / Tamper frequencies: see technical tables (0–45 Hz / 1–45 Hz; tamper 0–30 Hz)
